6.2.1.3.2 INFO Receiver

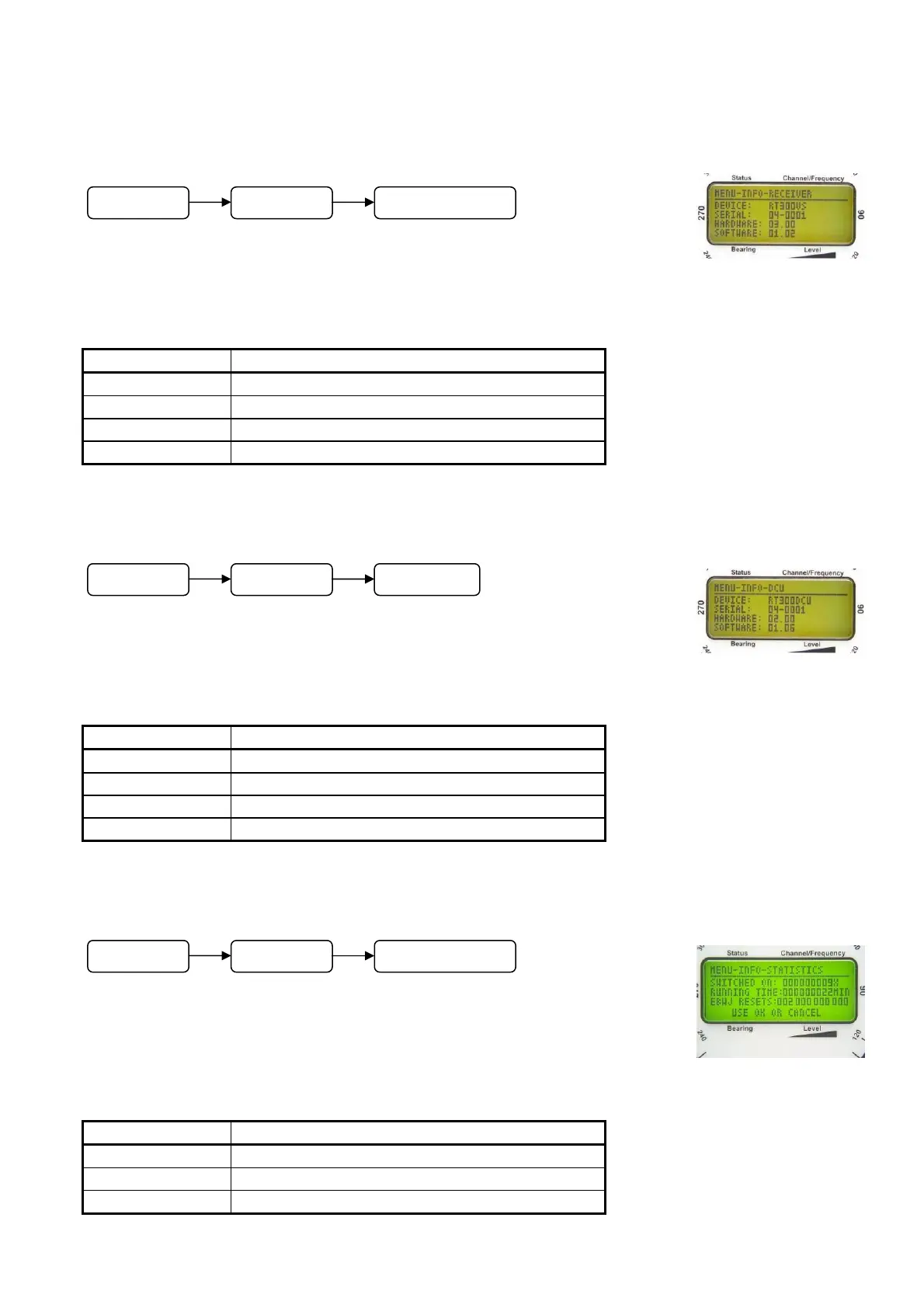

In the submenu INFO select display function RECEIVER. The display
appears as shown in Fig. 43.
Here the important data of the receiver can be seen:
Designation Meaning
DEVICE type of receiver
SERIAL serial number of receiver
HARDWARE hardware version of receiver
SOFTWARE software version of receiver.
6.2.1.3.3 INFO DCU (Display Control Unit)
In submenu INFO select display function DCU. The display appears as
shown in Fig. 44.
Here the important data of the DCU can be seen:
Designation Meaning
DEVICE type of DCU
SERIAL serial number of DCU
HARDWARE hardware version of DCU
SOFTWARE software version of DCU
6.2.1.3.4 INFO Statistics
In submenu INFO select display function STATISTICS. The display
appears as shown in Fig. 45.
Here the operating parameters can be seen:
Designation Meaning
SWITCHED ON number of switch-on’s
RUNNING TIME operating time
EBWJ RESETS number of recognized resets
Fig. 43
Fig. 44
Fig. 45
M
e
n
u
INFO RECEIVER
M
e
n
u
INFO DCU
M
e
n
u
INFO STATISTICS
