Rhotheta RT-300 - Menu SETUP; SETUP-Menu BEARING

User Manual Bearing System RT-300
Issue: 2017/06/27 [Rev 1.04.c] Page 39 of 79 12-9-1-0013-9-2-0001-3-1-60

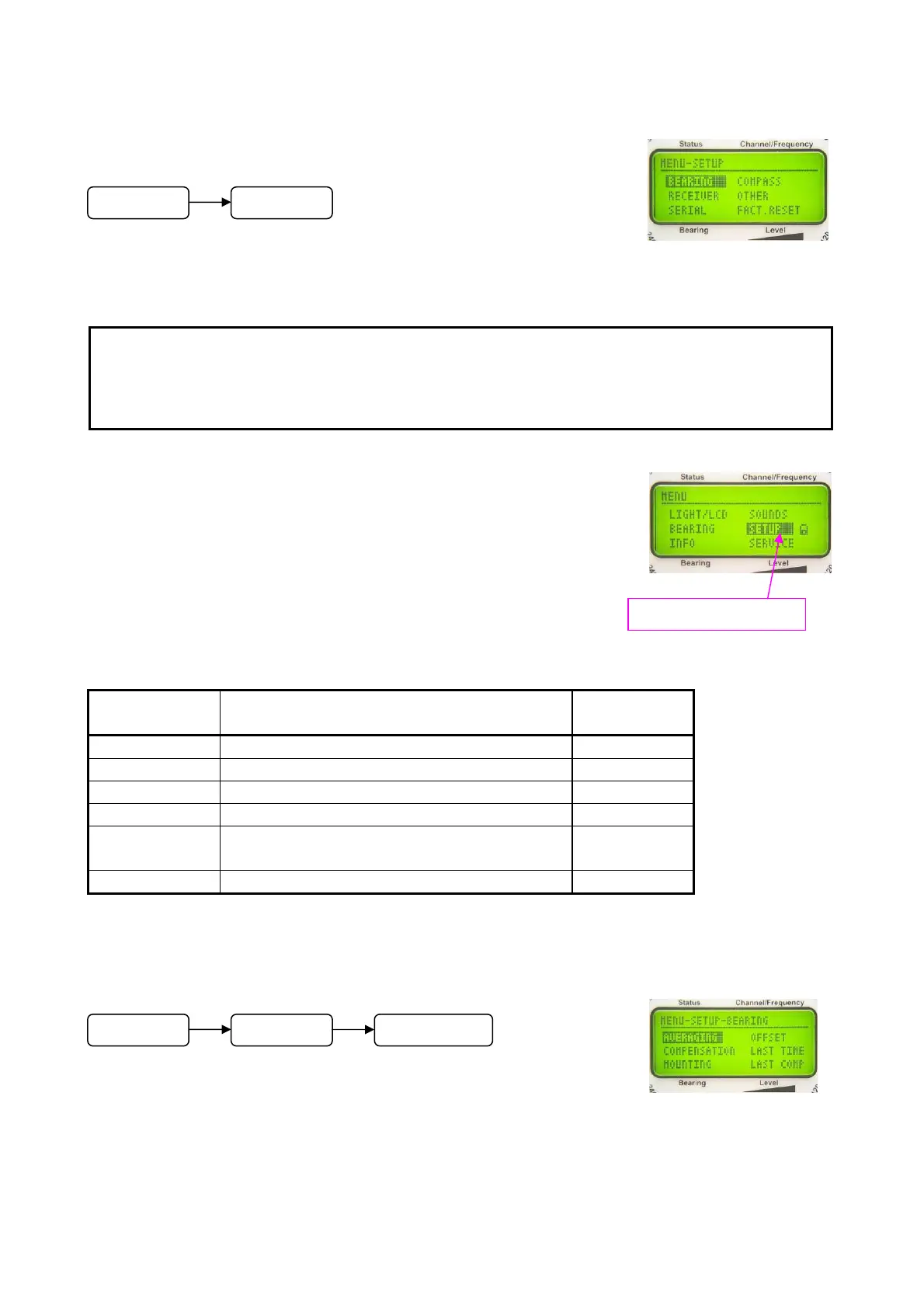

6.2.1.5 Menu: SETUP
In submenu SETUP all operating setups can be done. Prior
putting into operation the bearing system, all setups have to be checked, and if required
adapted.
In order to avoid unauthorized changes of the setup, the setup
menu can be locked. The locking is indicated by the symbol 
(see Fig. 50).
For locking and unlocking see 6.3.1.
The setup-menu is structured as follows:
Menu
Designation
Meaning see chapter
BEARING Setups controlling bearing functions 6.2.1.5.1
RECEIVER Setups controlling receiver functions 6.2.1.5.2
SERIAL Setup of interface parameter 6.2.1.5.3
COMPASS Setup of compass data 6.2.1.5.4
OTHER Setup of alarm contact functions
Setup external input
6.2.1.5.5
FACT. RESET Routine to reproduce factory defaults 6.2.1.5.6
6.2.1.5.1 SETUP-Menu BEARING
In submenu BEARING the setups for the bearing value
determination are executed.
Fig. 49
Fig. 50
Fig. 51
ATTENTION
Faulty setups may lead to considerable misfunctions, which may not be
recognized immediately. Therefore, the setup is to be lead only by instructed
p
ersons.
Menu
SETUP
Locked Setup Menu
M
e
n
u
SETUP BEARING
