User Manual Bearing System RT-300
Issue: 2017/06/27 [Rev 1.04.c] Page 74 of 79 12-9-1-0013-9-2-0001-3-1-60
Aligning reference direction QUJ (true compass bearing from transmitter to direction finder):
To be done as described in "Aligning for reference direction QDM", only the local variation
has to be subtracted from the nominal value.
Aligning reference direction QTE (true course from direction finder to transmitter):
To be done as described in "Aligning for reference direction magnetic north QDR", the local
variation has to be subtracted from the nominal value.
7.4.7 Mounting of Antenna Beams
Put antenna beams into receptacles of the antenna head,
until the fitting is resting fully in the groove of the drilling
(see Fig. 104). Fully tighten by hand the compressing nut
until feeling distinct resistance. Tighten nuts by using a
wrench (10 mm), with a torque not exceeding 3 Nm.
Don´t bend antenna beams in order to avoid bearing
errors.

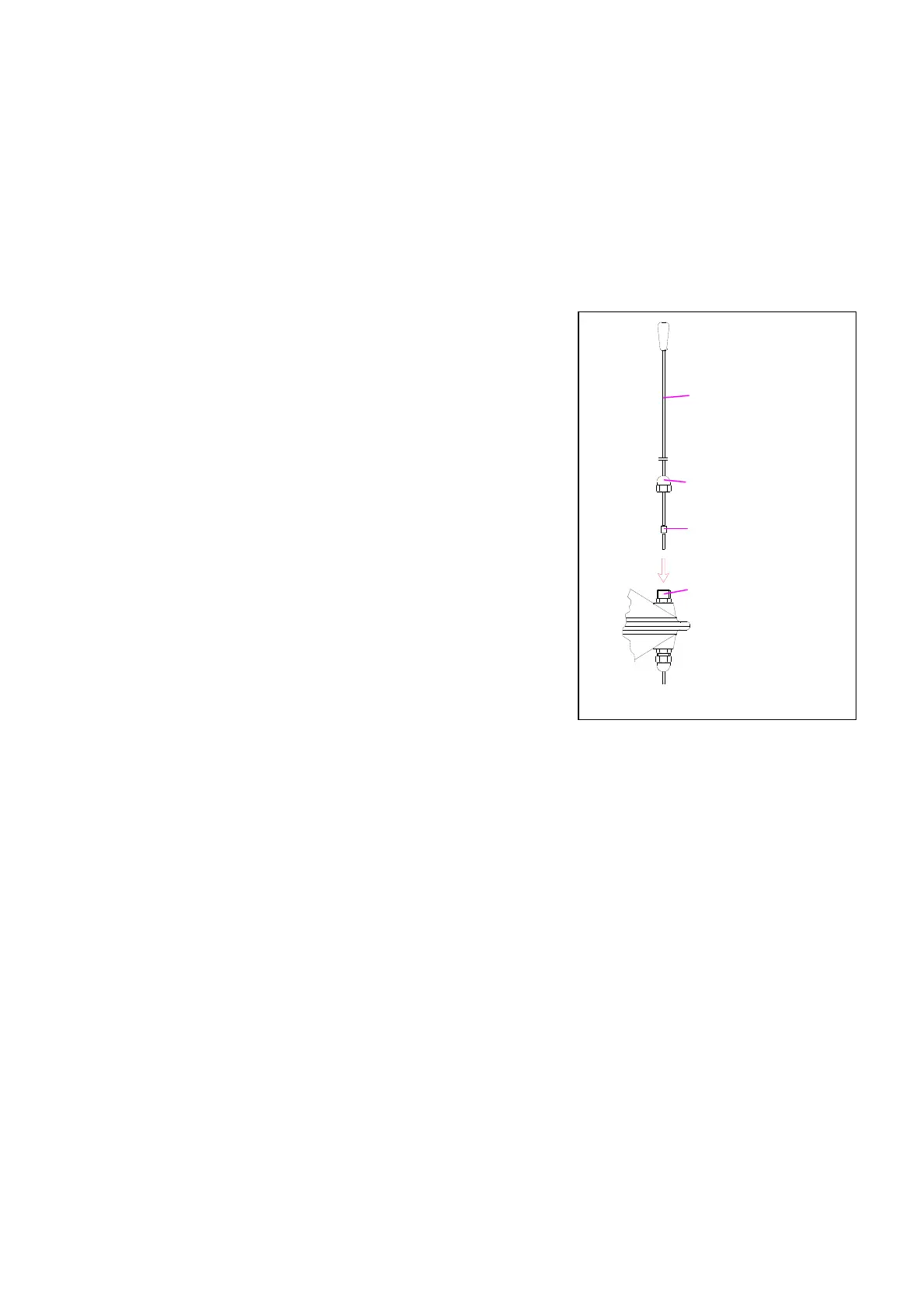

Fig. 104
Beam
com
ression nut
fitting
receptacle
