Rhotheta RT-300 - SETUP Menu: OTHER

User Manual Bearing System RT-300
Issue: 2017/06/27 [Rev 1.04.c] Page 55 of 79 12-9-1-0013-9-2-0001-3-1-60
6.2.1.5.5 SETUP Menu: OTHER
In submenu OTHER setups, concerning the operation of the relay
contact of the alarm function, are done.
Additionally the input of the self-bearing suppression (SBS) can
be activated and the demo mode can be started.
6.2.1.5.5.1 Configuration of Relay-contact: RELAY
The
bearing system RT-300 is equipped with a relay-contact, which is
closing if a distress signal is detected. It´s contacts are integrated
in the „POWER“ connector (see 6.4.2.3), external devices may be
connected (e.g. GPS MOB-function, alarm bell, warning light, etc.).
The working order can be set up in submenu SETUP - OTHER - RELAY.
6.2.1.5.5.1.1 Setting up Relay Mode: RELAYS MODE
Depending on application, different relay modes can be selected:
Designation Function Application
DISABLED Relay deactivated no external device connected
ON The contact remains closed
until the received signal is
disappeared.
Connection of an alarm bell

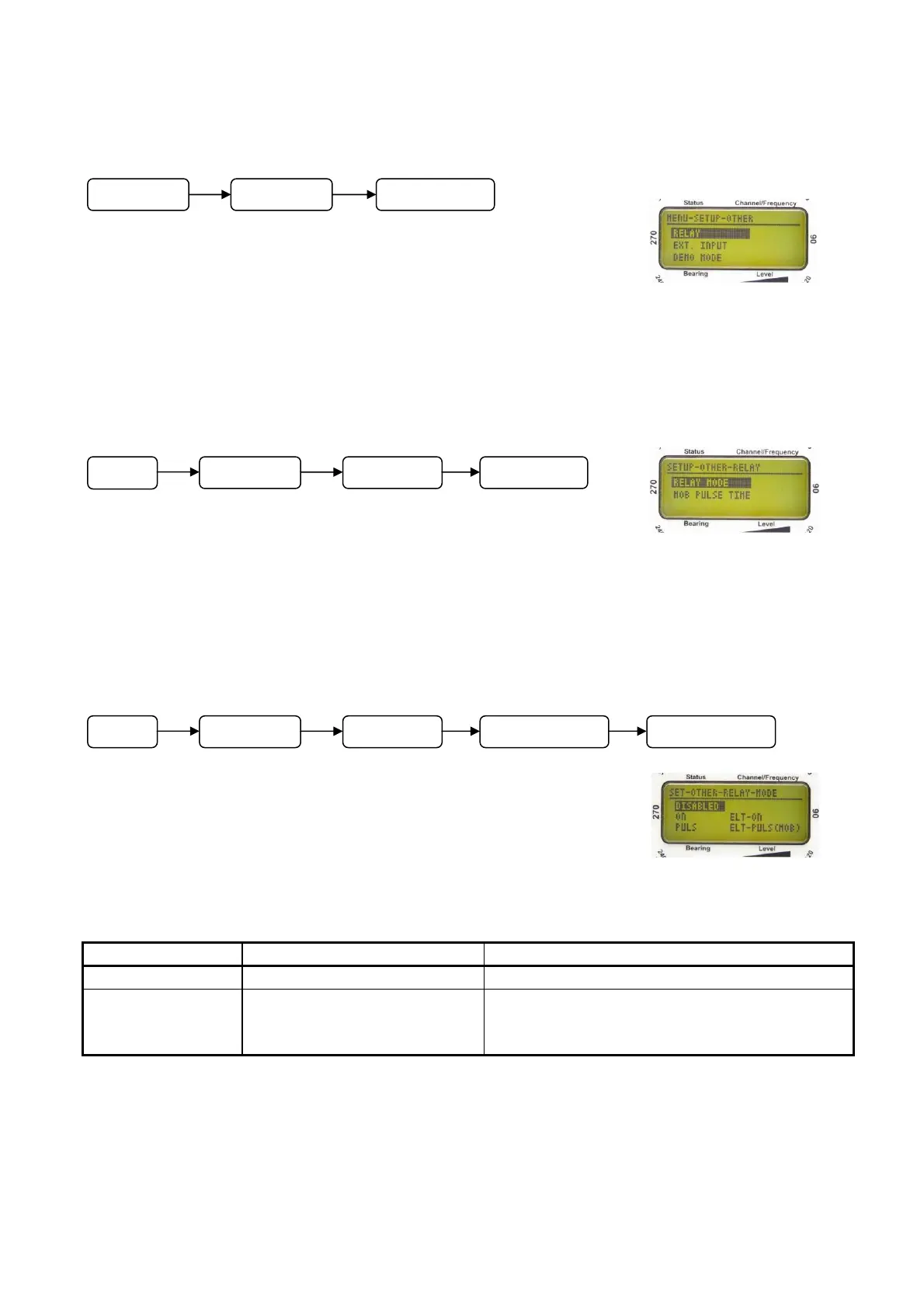

Fig. 82
Fig. 83
Fig. 84
M
e
n
u
SETUP OTHER
Menu
SETUP OTHER RELAY
M
e
n
u
SETUP OTHER RELAY RELAY-MODE
