NOTE
With the cable LifYCY6x2x0,50mm
2
(Metrofunk Kabel-Union), an operation with up to 350m
cable length is possible. The necessary operating voltage of the device with > 100m cable
length is 24V.
7.4 Installing the Antenna
The antenna is to be mounted on a suitable mast tube.
The antenna is delivered either with a threaded flange- or
with a 6-holed flange (the flange may be changed if
required).
7.4.1 Fixing Screw Joint on Mast Tube
If the antenna is delivered with a screw joint a suitable plastic
screw joint is added . The screw joint is provided for mast
tubes with an outside diameter of 50 mm (respectively 40 mm
with added reduction). Preferably the mast tube is consisting
of plastic.
Put the compression nut (threaded side to the top) onto the
mast tube . Stick together mast tube and flange with
suitable cement - use added reduction for mast diameter of 40
mm. On request there are reductions for other mast diameters.
7.4.2 6-Holed Mast Flange
If applying the 6-holed flange, the counterpart for the mast is
not added and has to be manufactured by oneself. Keep care
to align the pitch circle in a way, that one of the holes is
situated in the longitudinal axis of the vehicle.
7.4.3 Installing Antenna Cable with Pull-Relief
Pull antenna cable through mast tube. The socket (female) has
to point to the antenna. For cable lengths of more than 10 m a
pull-relief has to be mounted.
In any case, we recommend installing the pull-relief (in
content of delivery) between mast and antenna. Only in this
case the antenna system is waterproof (IP 67). The pull-relief has to be installed before
mounting the antenna (if using the added antenna cable, the pull-relief cannot be used).

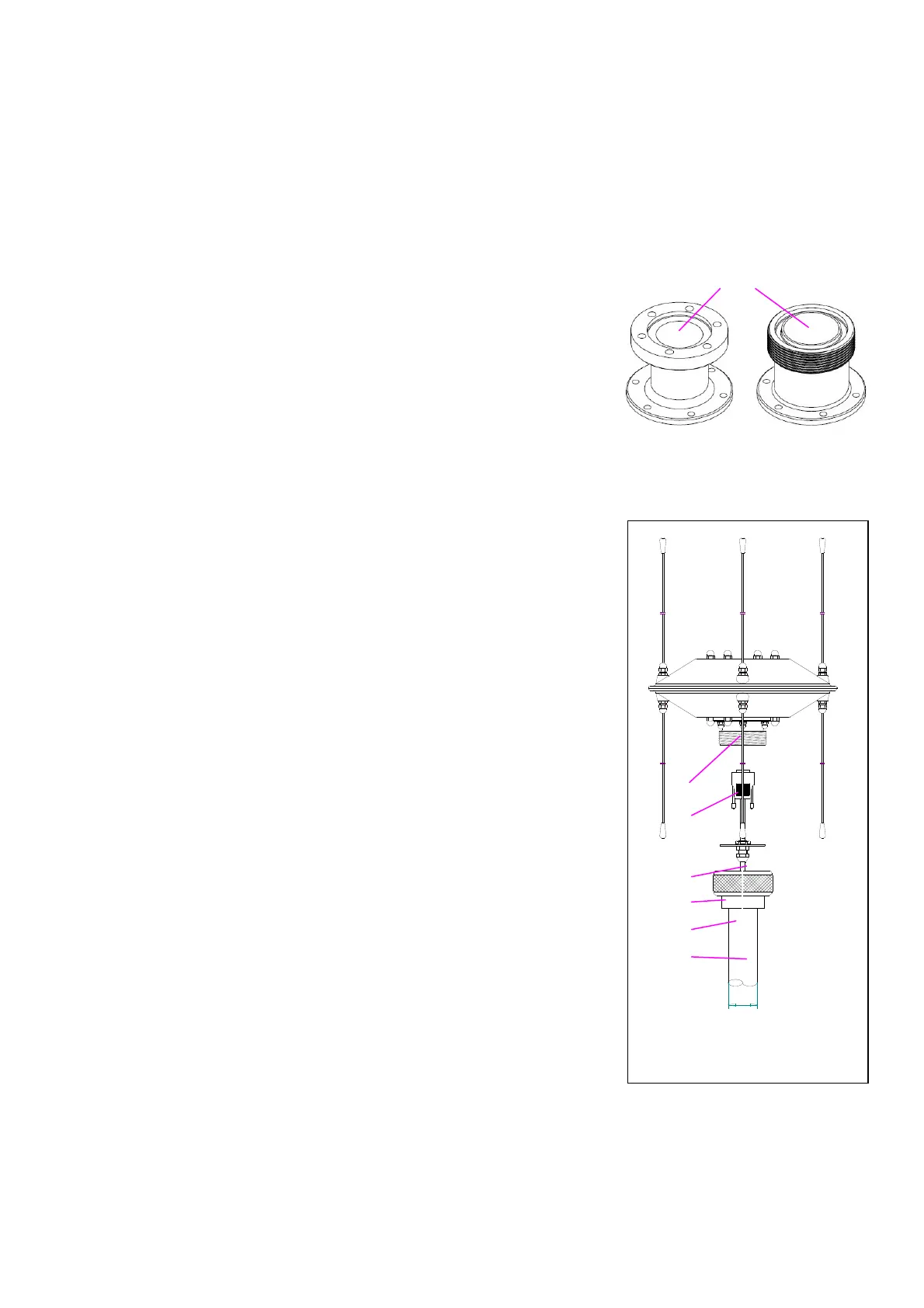

Fig 102
ø40
Fig. 103
