Combination Chart

117

Combination Chart

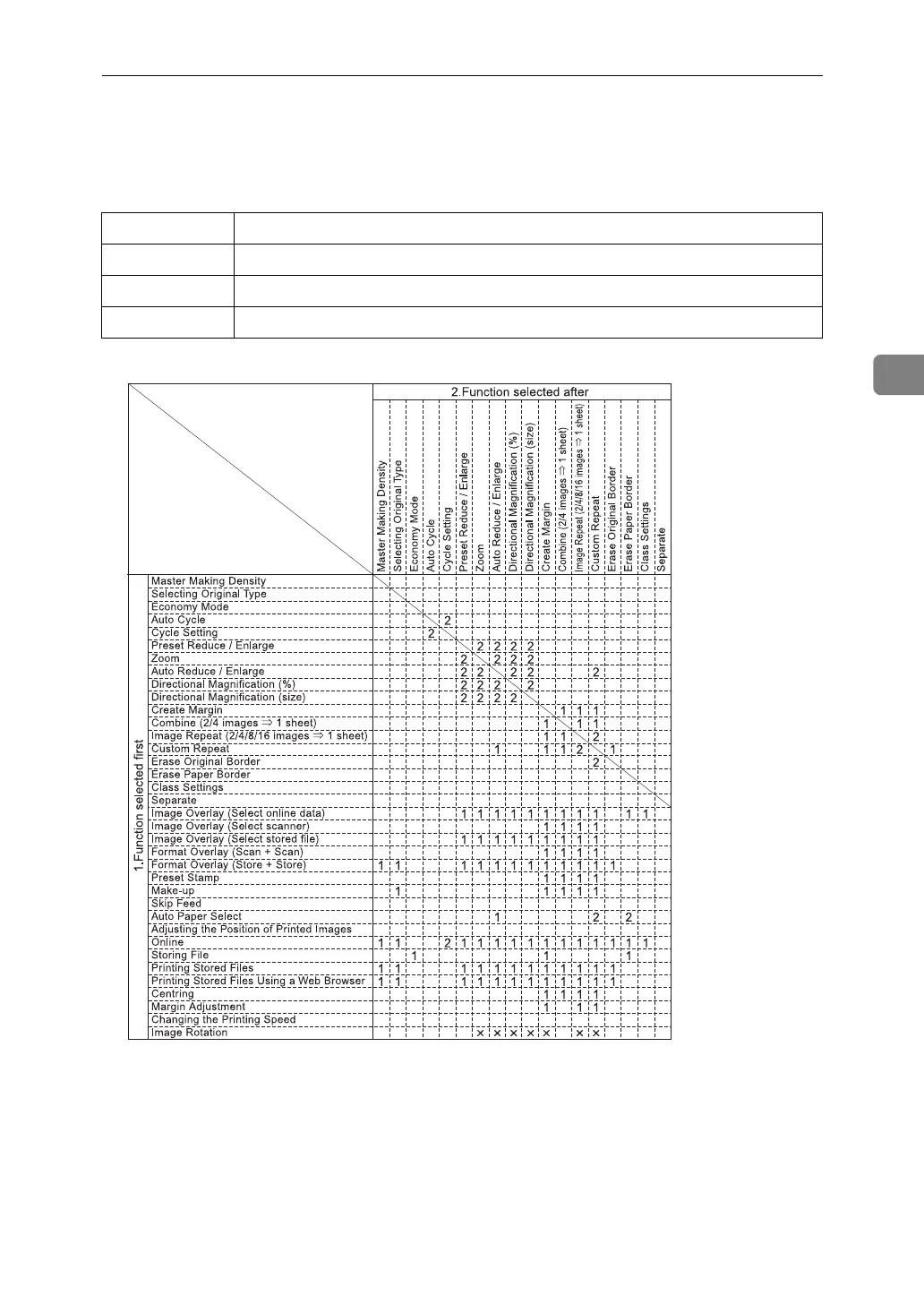

This combination chart shows which functions can be used together.

Can be used together.

× Cannot be used together.

1 Cannot be used together. The first function selected takes priority.

2 Cannot be used together. The second function selected takes priority.
