Guide to Major Options

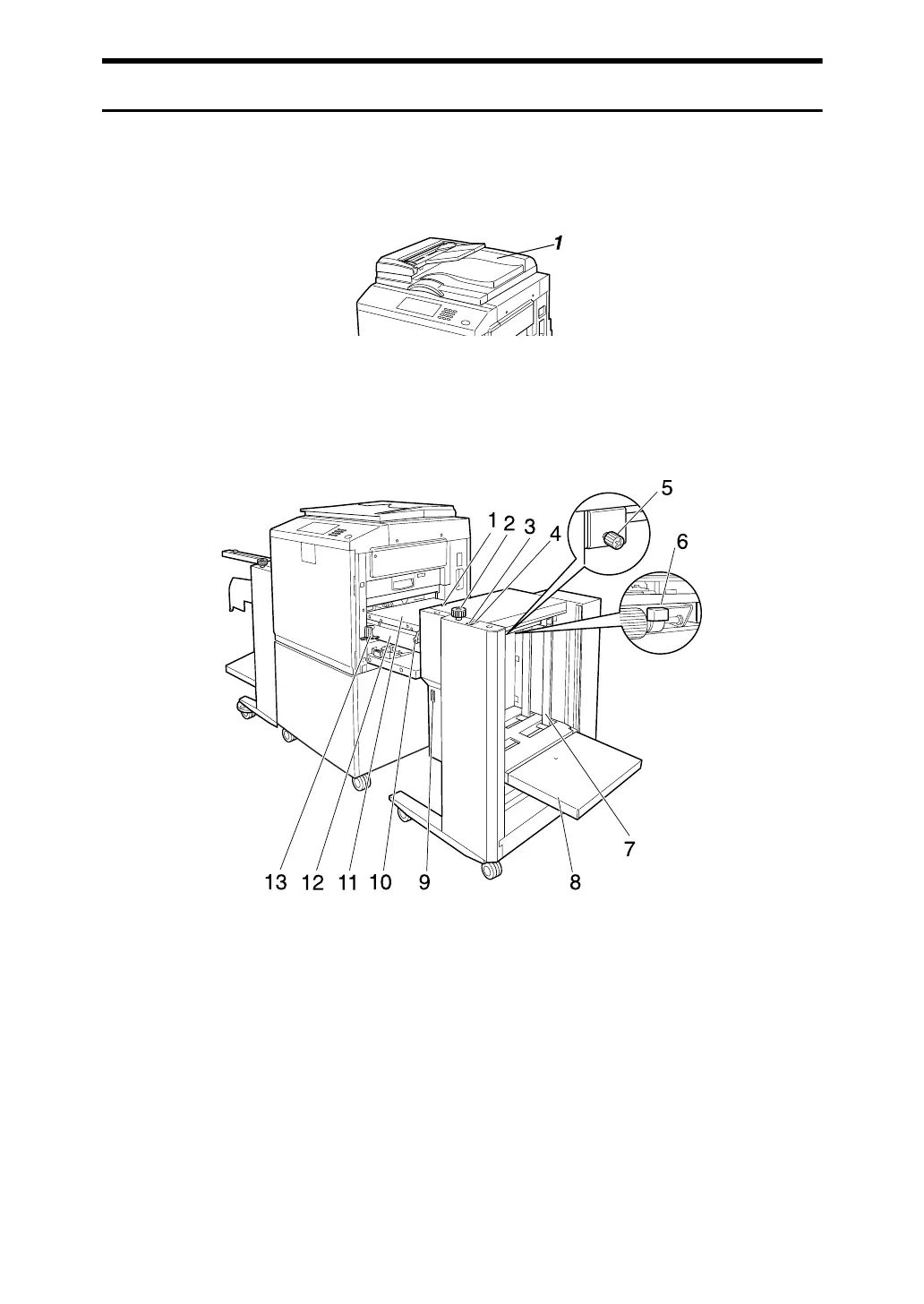

❖ Auto Document Feeder (ADF)

Load a stack of originals here. They will be fed automatically, one by one.

1. Auto Document Feeder

❖ Large Capacity System (LCS): Large capacity input tray (LCIT)

1. Indicators

2. Side guide adjustment knob

3. Down button

4. Up button

5. Side guide screw

6. Feeding pressure lever

7. Side guides

8. Input tray

9. Power switch

10. Cover release lever

11. Cover

12. Intermediate feeding section

13. LCIT release lever

AJK155S

AJK143S
