Printing Functions

Background Patterns

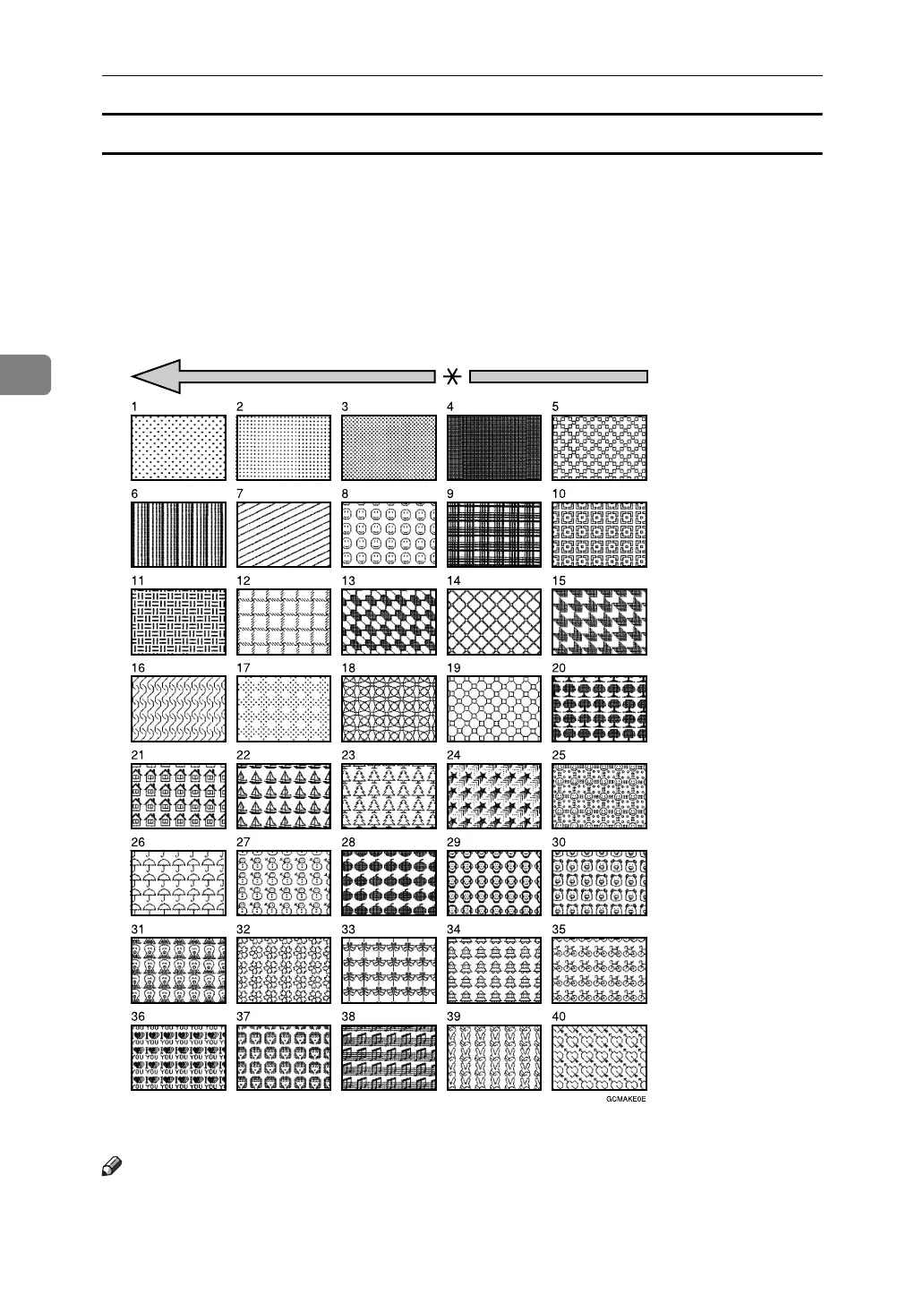

A total of 160 background patterns is available in Make-Up mode:

• 40 basic patterns

• 40 patterns similar to the basic patterns but with patterns elements at 4 times

the size.

• 80 variants based on 90° rotations of all the basic and enlarged patterns.

* Paper Feed Direction

Note

❒ The basic patterns are numbered 1 to 40.
