Ricoh Aficio GX e3300N

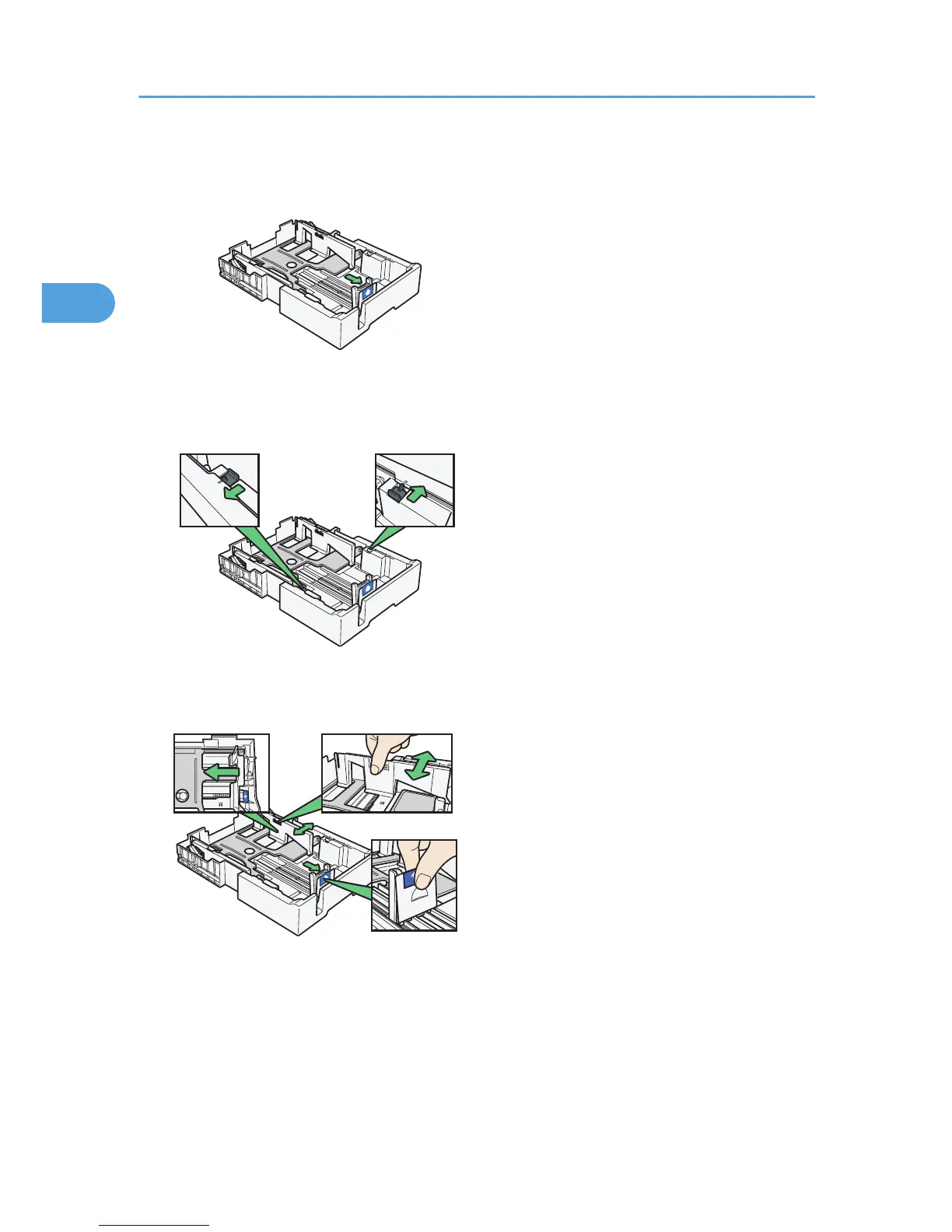

3. Pull out the paper tray extension.
BUG236S
4. Slide the tabs back into place to lock the paper tray extension into position.
BUG237S
5. While squeezing the catch on the paper guide, slide the guide so it is positioned according
to the paper size.
BUG238S
Do not use the paper tray extension for A4 (Letter) size paper or smaller paper. Use it only for long
paper.
Beforehand, make sure to squeeze the front end paper guide, and then expand the guide.
2. Preparing for Printing
52
2
