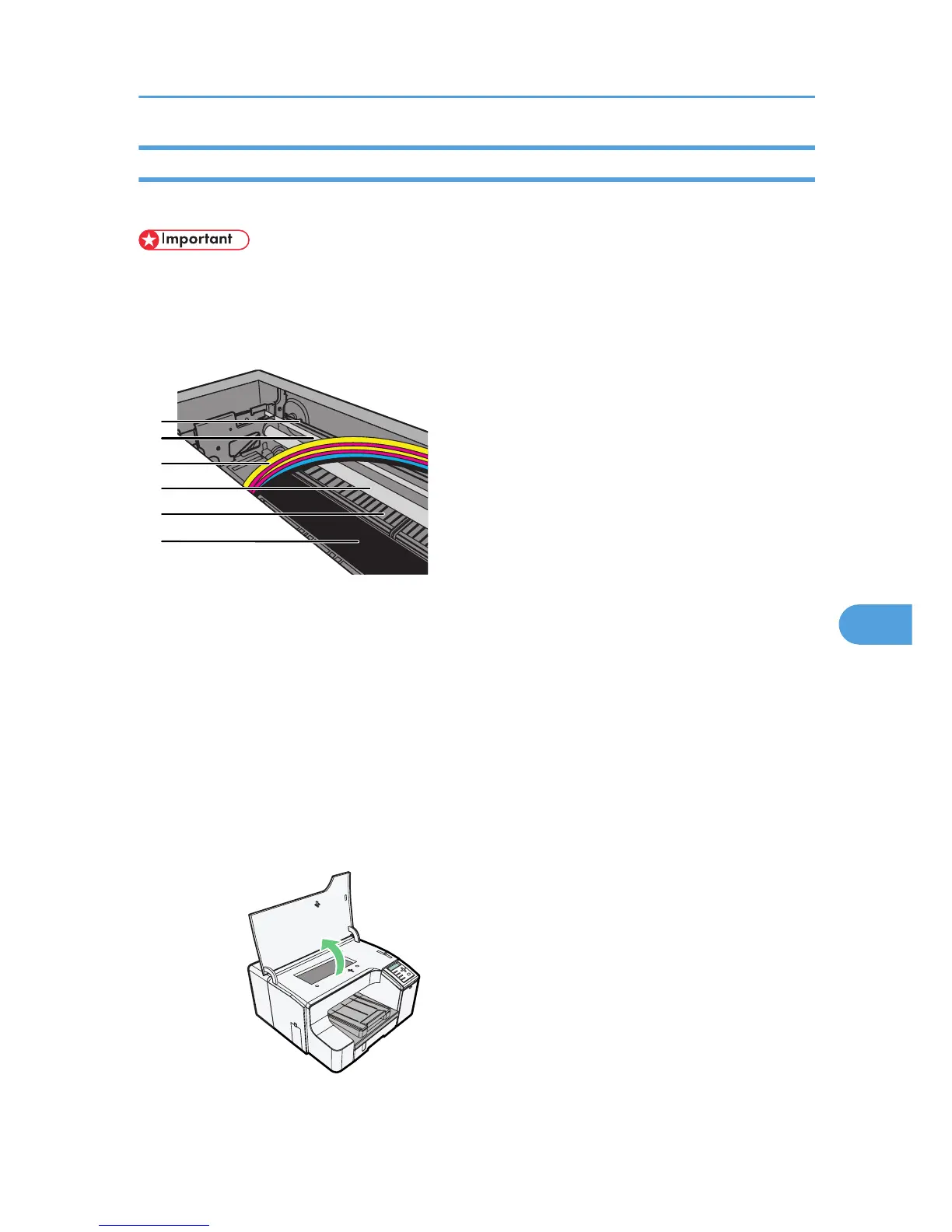

If You Cannot Remove Jammed Paper
This section explains how to remove badly jammed paper that you cannot remove by the usual methods.
• If the bypass tray and duplex unit are attached to the printer, switch the printer off and detach the
duplex unit.
• Do
not touch the feed belt, the transparent black band, print head rail rod, ink tubes, paper pressing
board, or the toothed rubber belt. Also, take care not to snag any cables or ink tubes with your sleeves.
1. Toothed rubber belt
2.
Transparent black band
3. Ink tubes
4. Print Head Rail Rod
5. Paper pressing board
6. Feed belt
• If the printer's ink tube is preventing access to the jammed paper, carefully pull the tube to the side.
Do not pull the tube upward. Pulling the tube upward will damage the printer.
1. Open the top cover.
To Next Page
