Ricoh Aficio GX e3300N

BPR172S
BPR173S

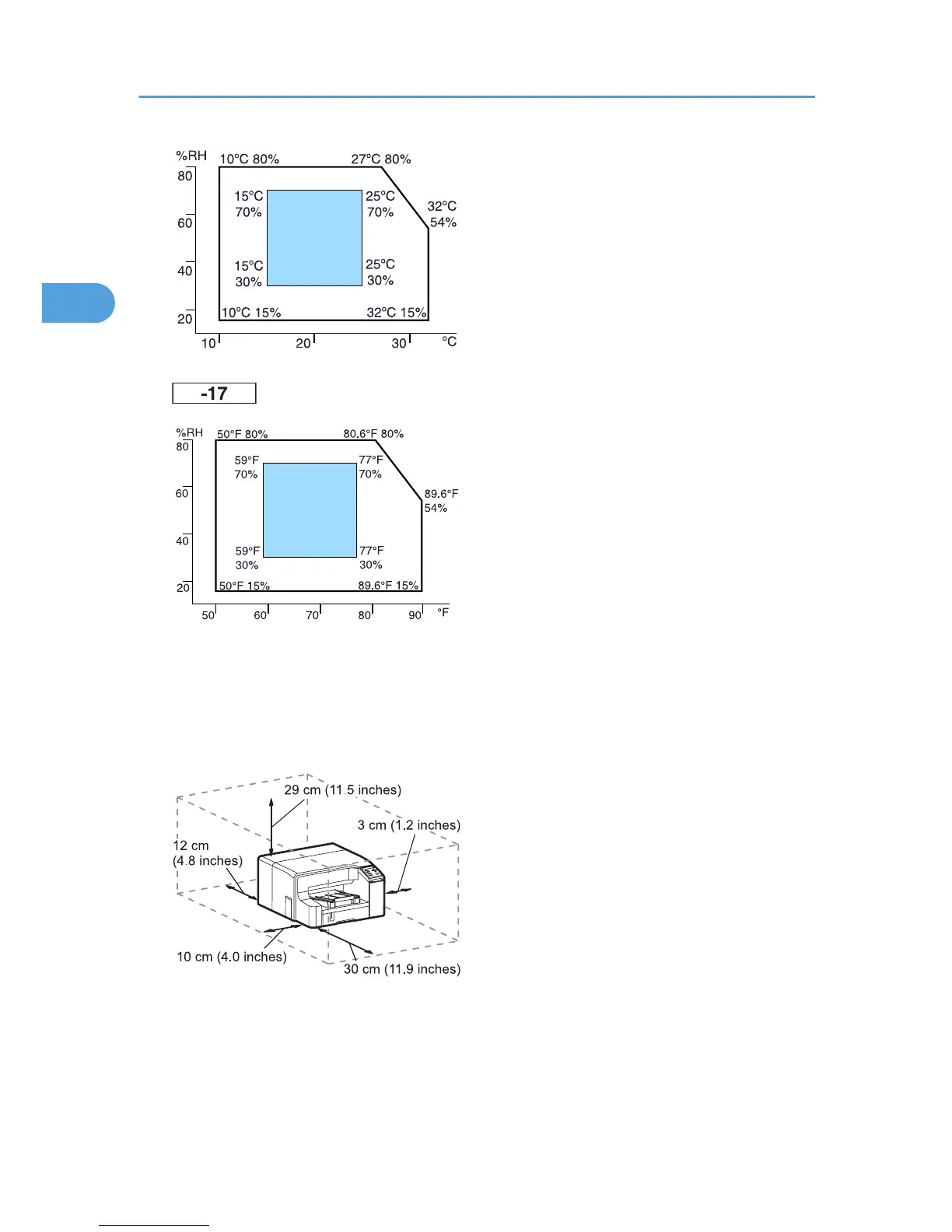

• White area: Permissible Range
• Blue area: Recommended Range
• The diagram below shows the ideal clearance for loading paper, replacing print cartridges, and
removing jammed paper
BPR205S
a. If you attach the bypass tray (option), provide additional clearance of 29 cm (11.5 inches).
2. Preparing for Printing
