Duplex Models

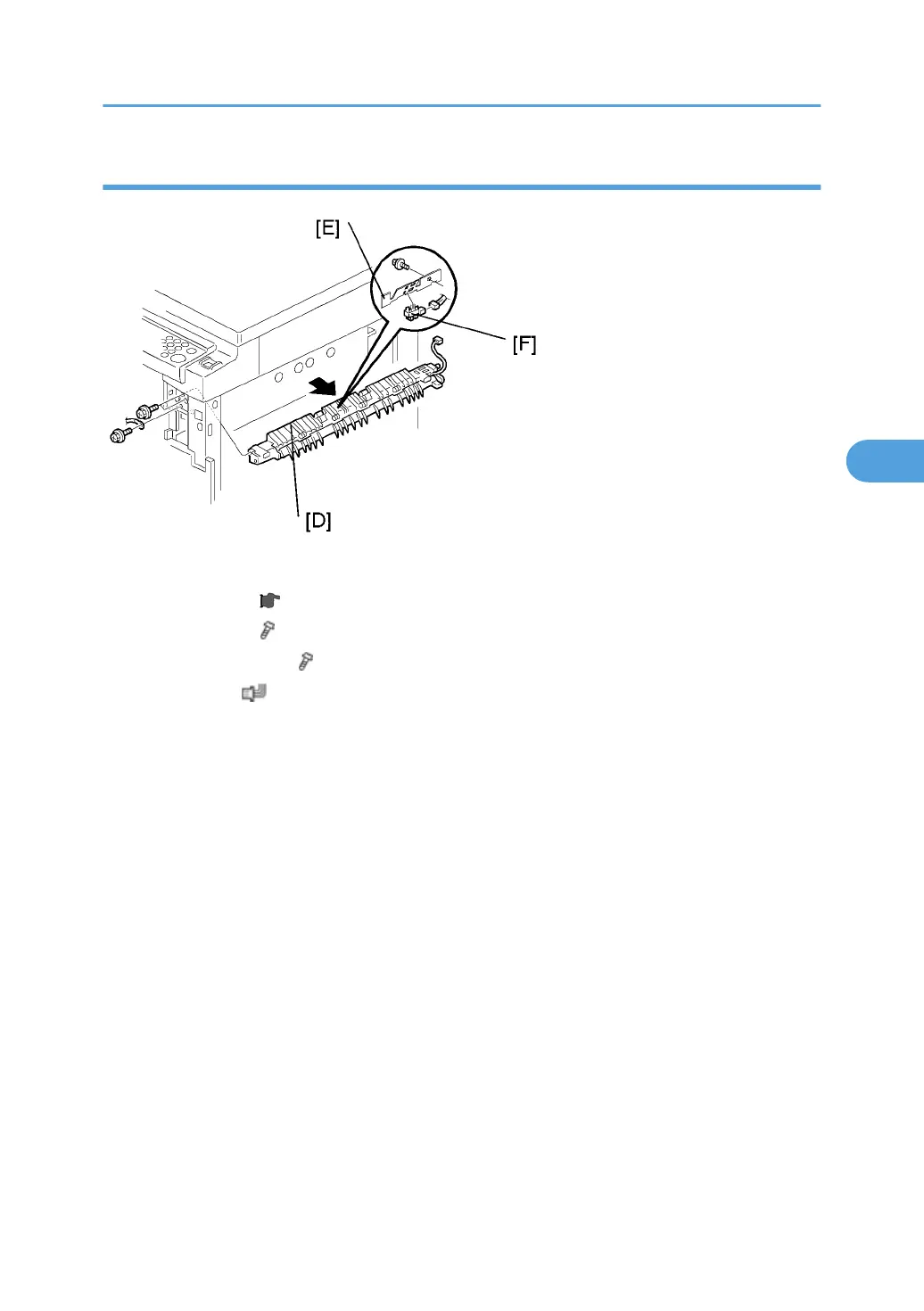

1. Open the right door.
2. Front right cover ( p.80)
3. Upper guide [D] ( x 2)
4. Exit sensor bracket [E] ( x 1)
5. Exit sensor [F] ( x 1)
