7. Registration clutch ( p.115 "Registration Clutch ")
8. PCU ( p.101)
• This step releases the gear (on the gearbox) that drives the PCU.

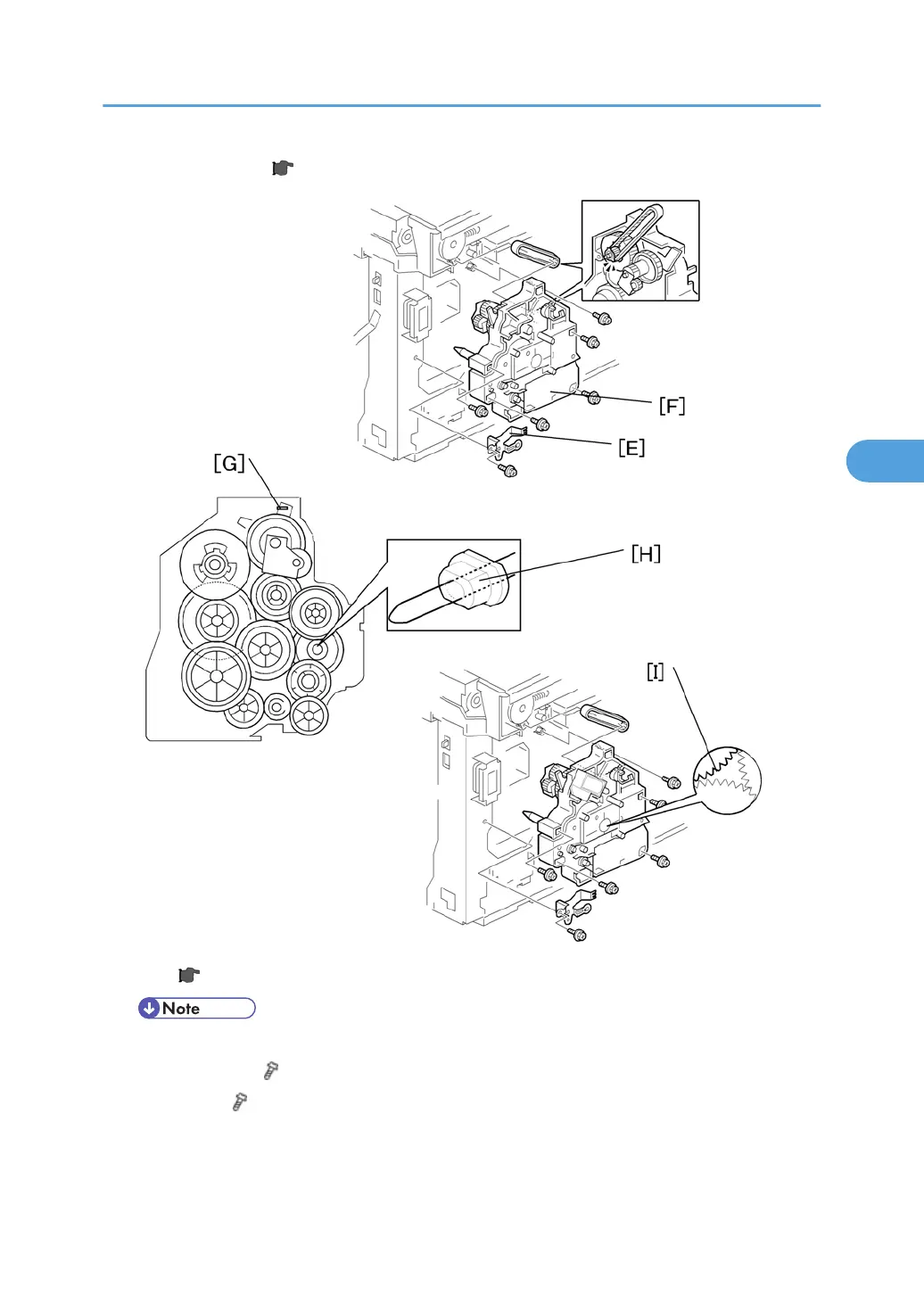

9. Ground plate [E] ( x 2)
10. Gearbox [F] ( x 5, 1 belt)
Do not change
the position of the spring [G] and make sure that the bushing [H] on the PCU drive shaft is
in the correct position you when you reassemble. You can adjust its position by rotating the gear [I] seen
from the opening of the gearbox.
Other Replacements
139
