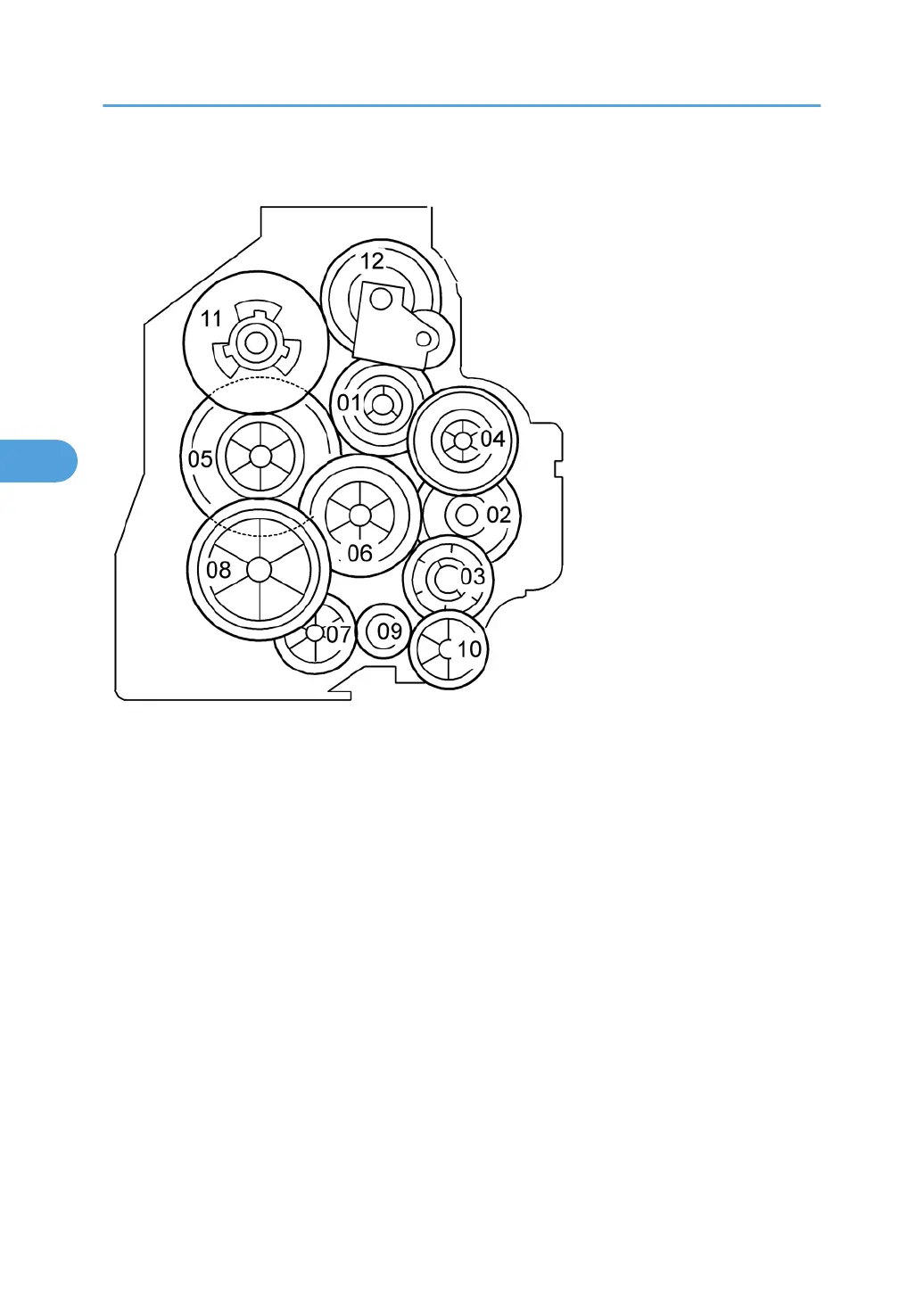

- Gear Arrangement in the Gearbox -
The gears are numbered 1 to 12 in the order in which they are to be installed in the gearbox. These numbers
show both on the gearbox and on the front (exposed) surface of each gear. If the gears fall out, start by
finding gear number 1 and installing it onto location number 1 (setting it into place so that the side with the
printed number stays visible). Then install the remaining gears (2 to 12) in the same way.
4. Replacement and Adjustment
140
