Tray SP mode Specification
Any paper tray SP 1001 1
2 ± 1.5 mm
By-pass feed SP 1001 2
Duplex SP 1001 3
1st tray SP 1002 1
2nd tray SP 1002 2
3rd tray
(Optional PFU tray 1)
SP 1002 3
By-pass feed SP 1002 4
Duplex SP 1002 5

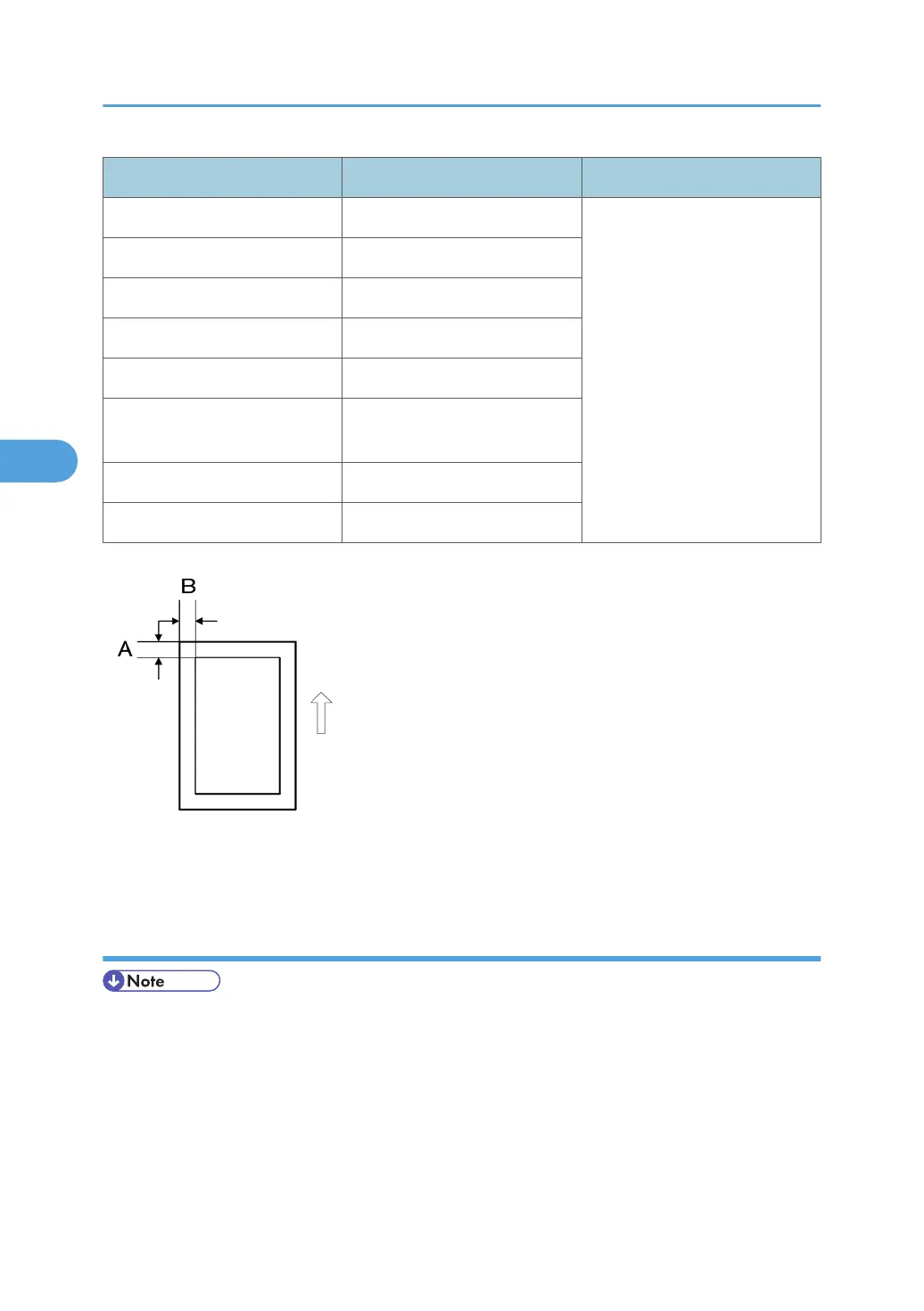

A: Leading Edge Registration
B: Side-to-side Registration
Blank Margin
• If the leading edge or side-to-side registration cannot be adjusted to within the specification, then
adjust the leading-edge blank margin or the left-side blank margin.
1. Check the trailing edge and right side edge blank margins, and adjust them using the following SP
modes.
4. Replacement and Adjustment
142
