Registration: Platen Mode
1. Place the test chart on the exposure glass and make a copy from one of the feed stations.
2. Check the leading edge and side-to-side registration, and adjust as necessary with the following SP
modes.
SP mode Specification
Leading edge SP 4010
2 ± 1.5 mm
Side-to-side SP 4011

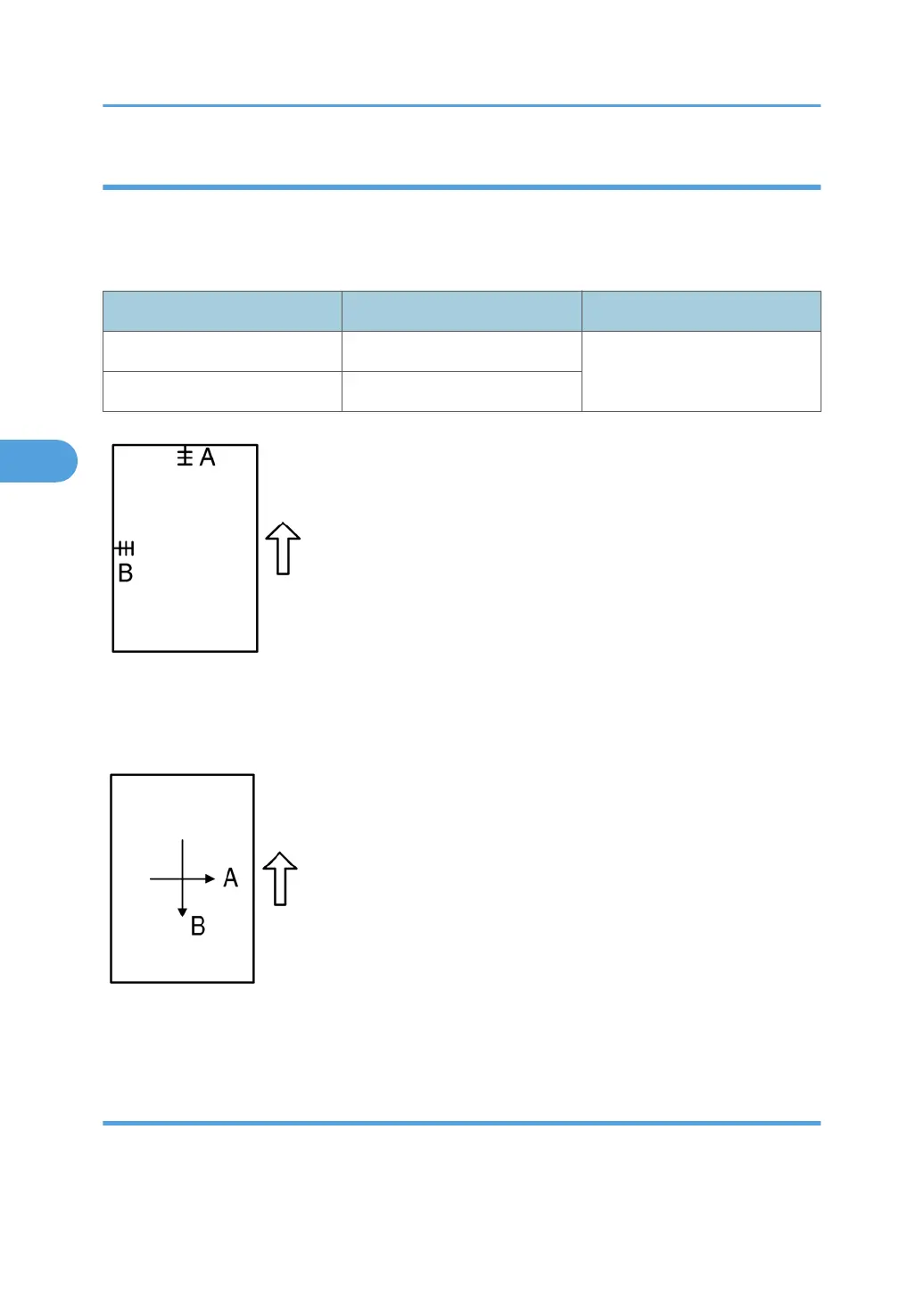

A: Leading edge registration
B: Side-to-side registration
- Magnification -
A: Main scan magnification
B: Sub-scan magnification
Main Scan Magnification
1. Place the A3 test chart on the exposure glass and make a copy from one of the feed stations.
2. Check the magnification ratio. If necessary, adjust the magnification using the following SP mode.
4. Replacement and Adjustment
144
4
