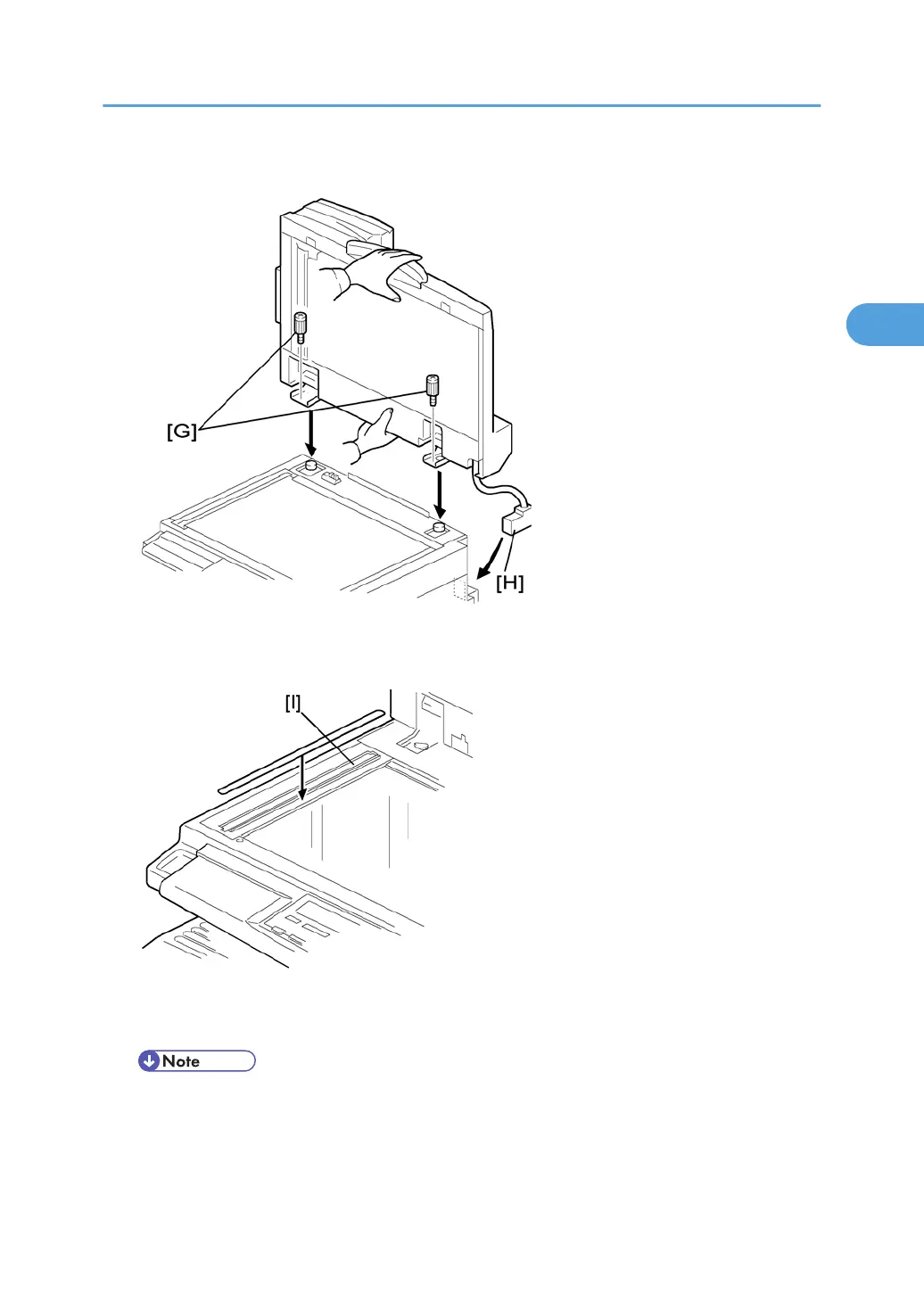

6. Mount the ARDF on the copier, and then slide it to the front.
7. Secure the ARDF unit with the knob screws [G].
8. Connect the cable [H] to the copier.
9. Attach the appropriate original size decal [I] as shown.
10. Attach an attention decal to the top cover.
• The attention decals in the package are written in different languages.
ARDF Installation
31
