1. Remove the strips of tape. Make sure that you have removed all the strips of tape and all the pieces
of cardboard.

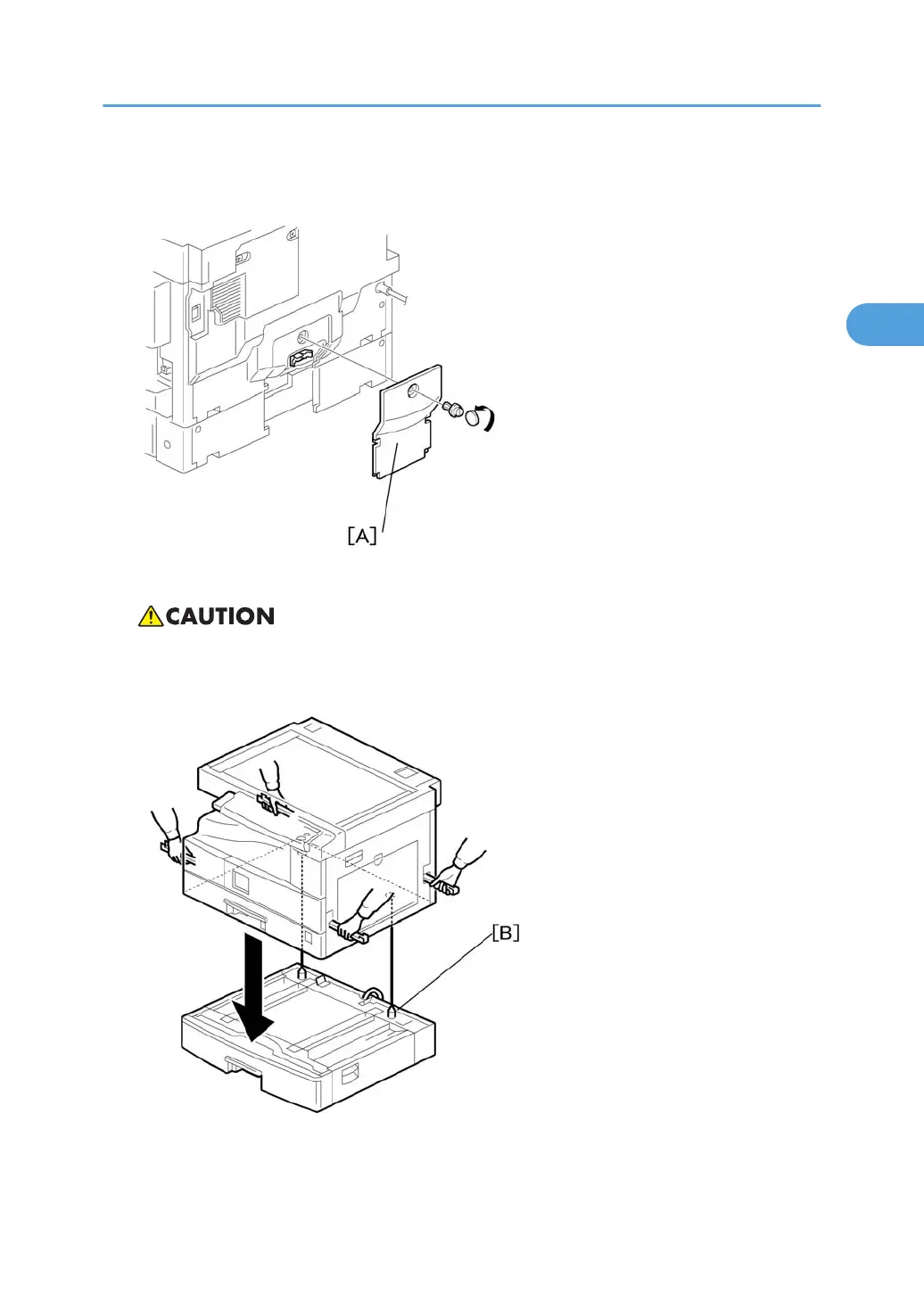

2. Remove the cover [A] (1 rivet).
• Before placing the copier on the paper tray unit, make sure that the harness [B] is safe. The paper
tray unit does not function properly if the harness is damaged.
3. Set the copier on the paper tray unit.
One-tray Paper Tray Unit Installation
43
