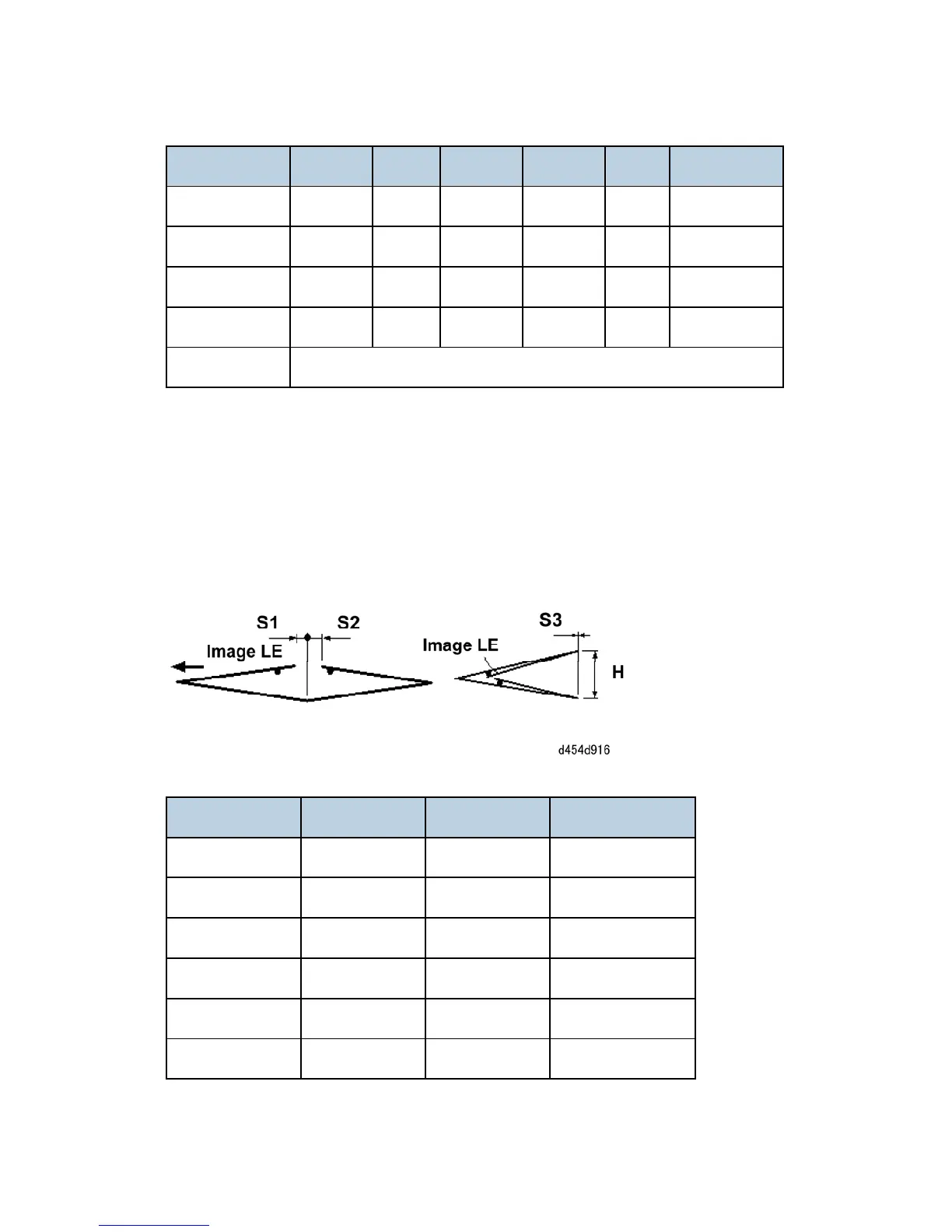

Replacement and Adjustment
D454 74 SM
Size Setting Default Range Setting Default Range
LT SEF S1 0 mm ±4 mm S2 0 mm ±4 mm
12"x18" S1 0 mm ±4 mm S2 0 mm ±4 mm
8-Kai S1 0 mm ±4 mm S2 0 mm ±4 mm
Other S1 0 mm ±4 mm S2 0 mm ±4 mm
Pitch Adj. 0.2 mm
FM6 Gate Fold
User Tool Adjustment (Operator, Skilled Operator)
The following standard adjustment of "S1" and "S2" can be done by the operator or skilled
operator in the User Tools mode.
Size Setting Default Range
A3 SEF S1, S2 2 mm 2 to 12 mm
B4 SEF S1, S2 2 mm 2 to 12 mm
A4 SEF S1, S2 2 mm 2 to 12 mm
DLT S1, S2 2 mm 2 to 12 mm
LG S1, S2 2 mm 2 to 12 mm
LT SEF S1, S2 2 mm 2 to 12 mm
