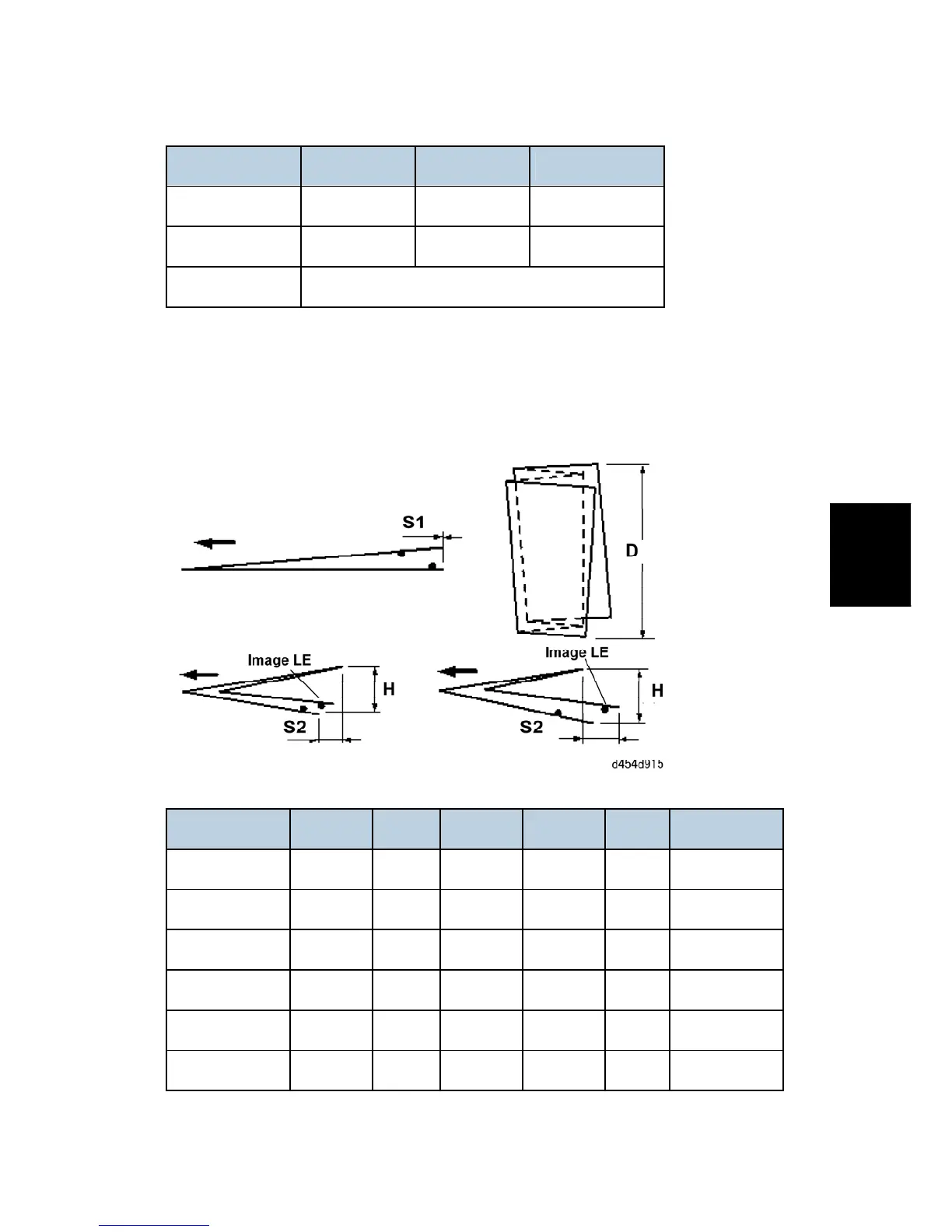

Fold Adjustments
SM 73 D454
Multi-Folding
Unit FD5000
D454
Size Setting Default Range
LT SEF S1 0 mm ±10 mm
Other S1 0 mm ±10 mm
Pitch Adj. 1 mm
Engine SP Adjustment
The following fine adjustment of "S1" and "S2" can be done by the customer engineer in the
SP mode.
Size Setting Default Range Setting Default Range
A3 SEF S1 0 mm ±4 mm S2 0 mm ±4 mm
B4 SEF S1 0 mm ±4 mm S2 0 mm ±4 mm
A4 SEF S1 0 mm ±4 mm S2 0 mm ±4 mm
B5 SEF S1 0 mm ±4 mm S2 0 mm ±4 mm
DLT S1 0 mm ±4 mm S2 0 mm ±4 mm
LG S1 0 mm ±4 mm S2 0 mm ±4 mm
