Controller Options
D037/D038/D040/D041 2-92 SM

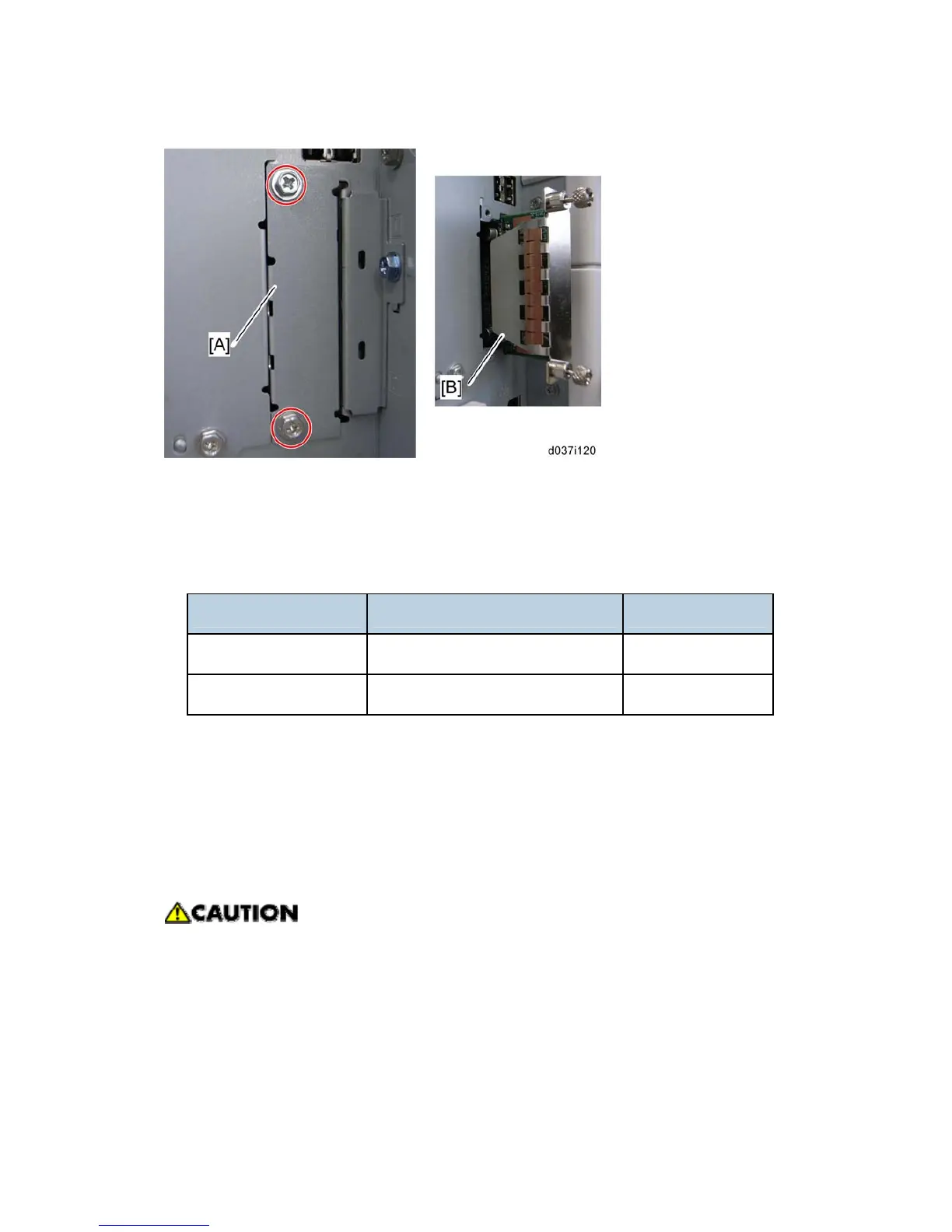

1. Remove the I/F-slot cover [A] ( x 2).
2. Install the file format converter [B] into the I/F-slot and then fasten it with screws.
3. Plug in and turn on the main power switch.
4. Check or set the following SP codes with the values shown below.
SP No. Title Setting
SP5-836-001 Capture Function (0:Off 1:On) "1"
SP5-836-002 Panel Setting "0"
5. Check the operation.
6. Make sure that the machine can recognize the option (see ‘Check All Connections’ at
the end of this section).
2.22.5 IEEE1284 (D038/D041 ONLY)
Installation Procedure
Unplug the main machine power cord before you do the following procedure.
You can only install one of the following network interfaces at a time: (IEEE 802.11 a/g, g
(Wireless LAN), IEEE1284, Bluetooth).
