Fusing
SM 4-95 D037/D038/D040/D041
Replacement
& Adjustment

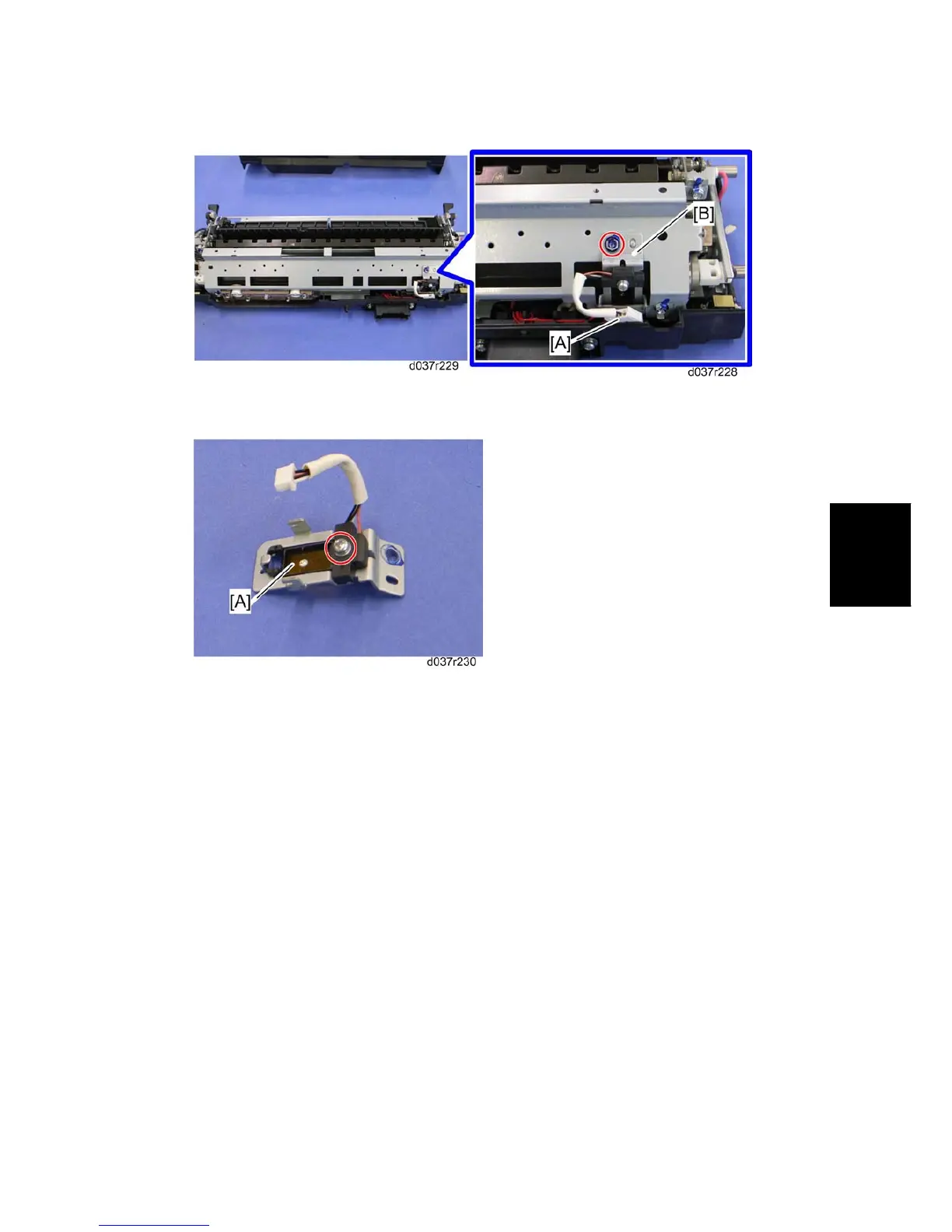

2. Disconnect the connector [A].
3. Heating roller thermistor assembly [B] ( x 1)
4. Heating roller thermistor [A] ( x 1)
Cleaning Requirement
The heating roller thermistor requires cleaning maintenance at every 60 K interval. Clean
the heating roller thermistor with a dry cloth.
4.11.13 PRESSURE ROLLER THERMISTOR
Pressure Roller Thermistor: Center
1. Fusing unit ( Section: Fusing Unit)
2. Fusing upper cover ( Section: Pressure Roller Fusing Lamp)
