Ricoh D037 - Hvps: Tts Board

Electrical Components
SM 4-133 D037/D038/D040/D041
Replacement
& Adjustment
4.15.9 HVPS: TTS BOARD
1. Rear cover ( Section: Rear Cover)
2. Open the controller box ( Section: Controller Box)

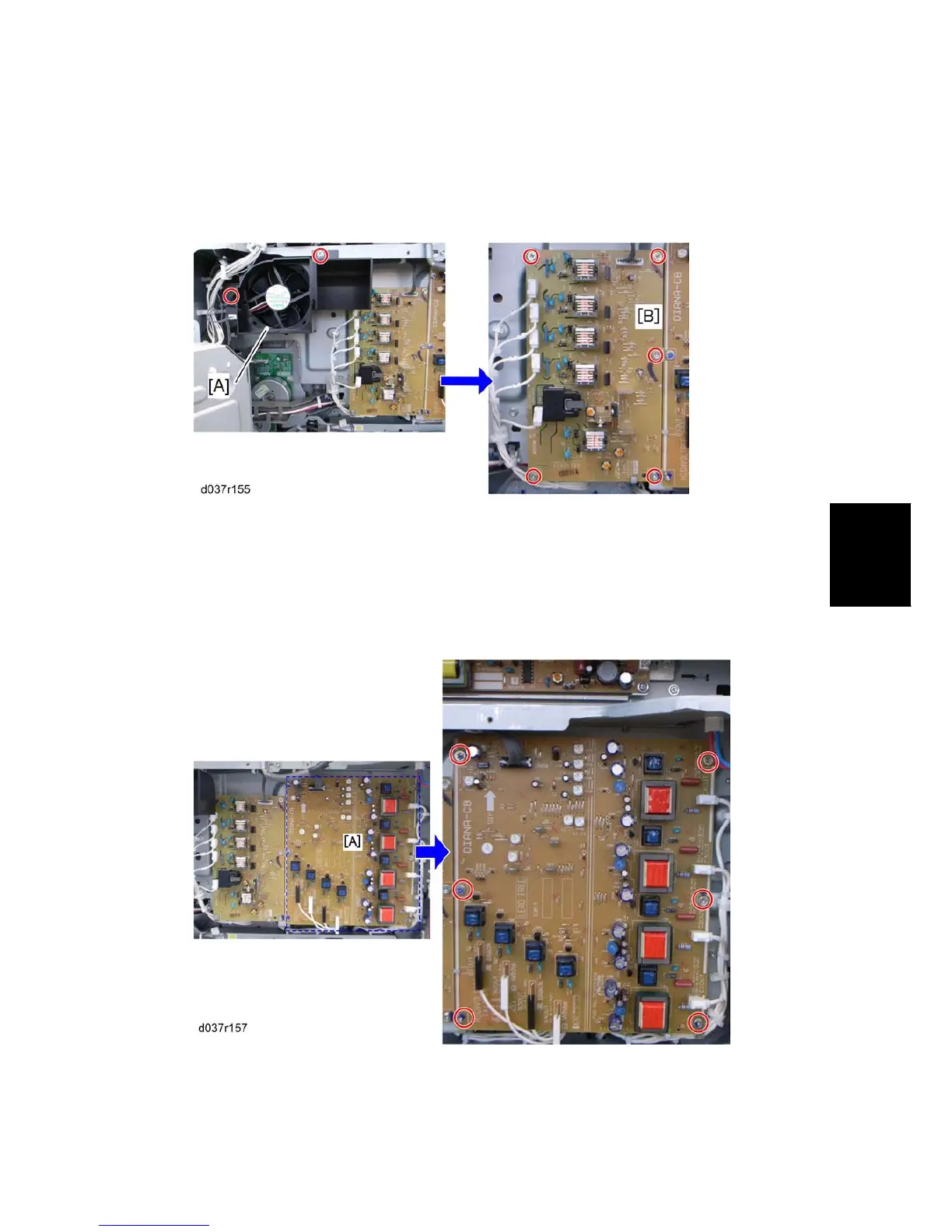

3. Fusing rear fan [A] ( x 2, = x 1,  x 1)
4. HVPS: TTS board [B] ( x 5,  x all)
4.15.10 HVPS: CB BOARD
1. Rear cover ( Section: Rear Cover)
2. Open the controller box ( Section: Controller Box)
3. HVPS: CB board [A] ( x 6, All  s)
