Clean the registration roller and registration idle roller [A] with a damp cloth every 60 K
(total count).
 Never use alcohol to clean the registration roller.
4.12.7 VERTICAL TRANSPORT SENSOR
Vertical Transport Sensor 1
1. Duplex unit ( Section: Duplex Unit)
2. Open the paper transfer unit to the fully-open position ( Section: PTR (Paper
Transfer Roller) Unit).

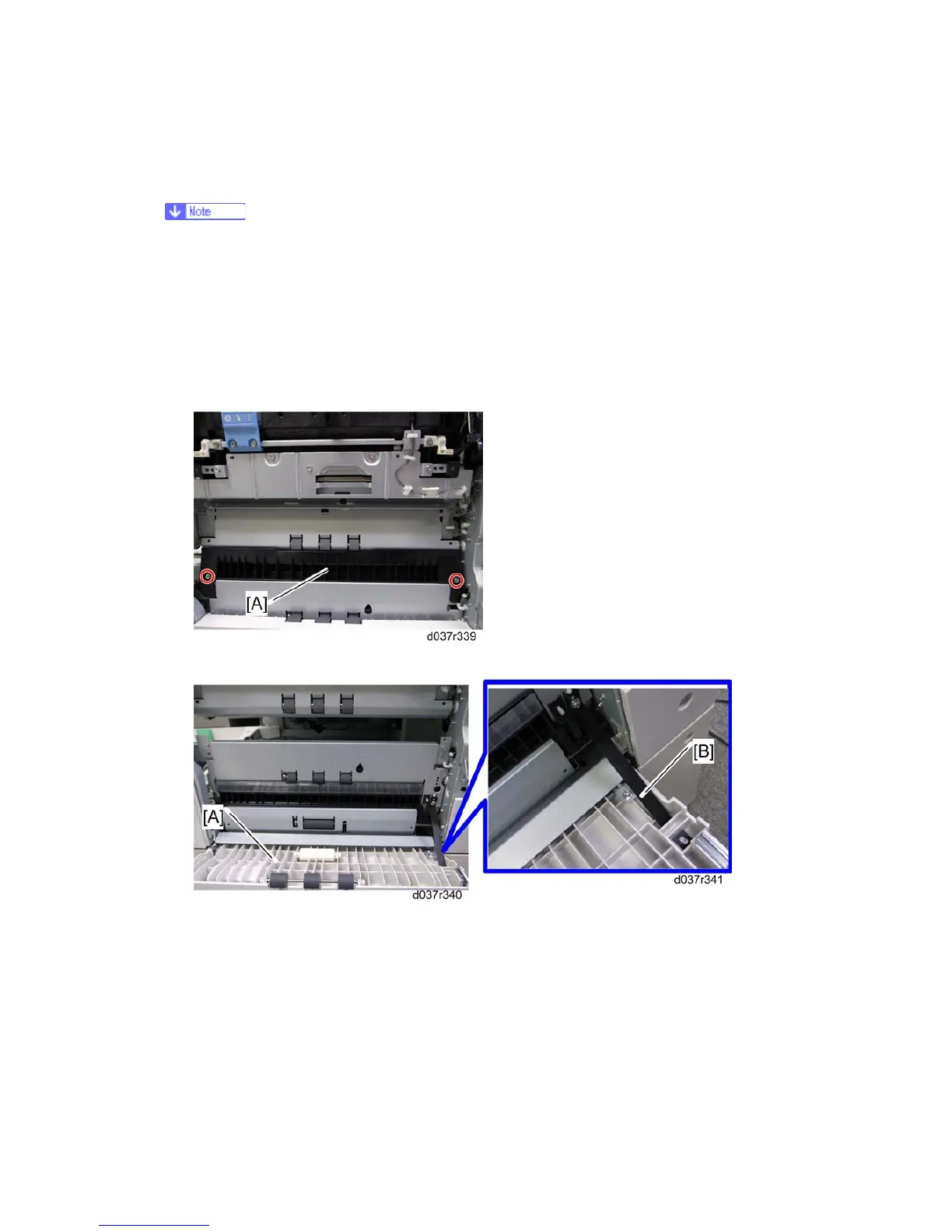

3. Middle guide plate [A] ( x 2)
4. Open the lower right door [A].
5. Release the belt [B].
