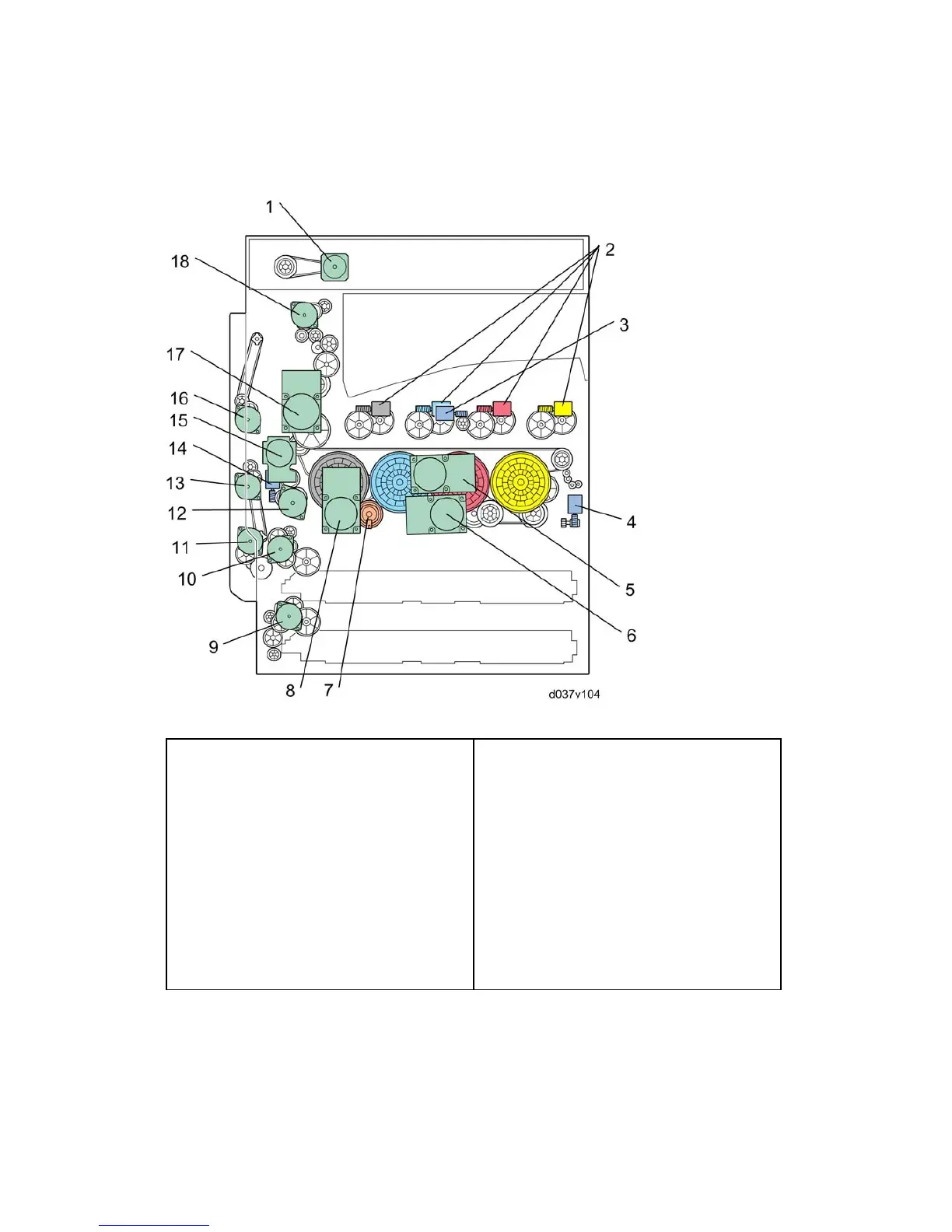

2.1.3 DRIVE LAYOUT
1. Scanner motor
2. Toner supply motors
3. ITB contact motor
4. Used toner collection motor
5. Drum motor: CMY
6. Development motor: CMY
7. Development clutch: K
8. Drum/Development motor: K
9. Paper feed motor: T2
10. Paper feed motor: T1
11. By-pass motor
12. Registration motor
13. Duplex exit motor
14. PTR contact motor
15. ITB unit motor
16. Duplex entrance motor
17. Fusing/Paper exit motor
18. Inverter motor
