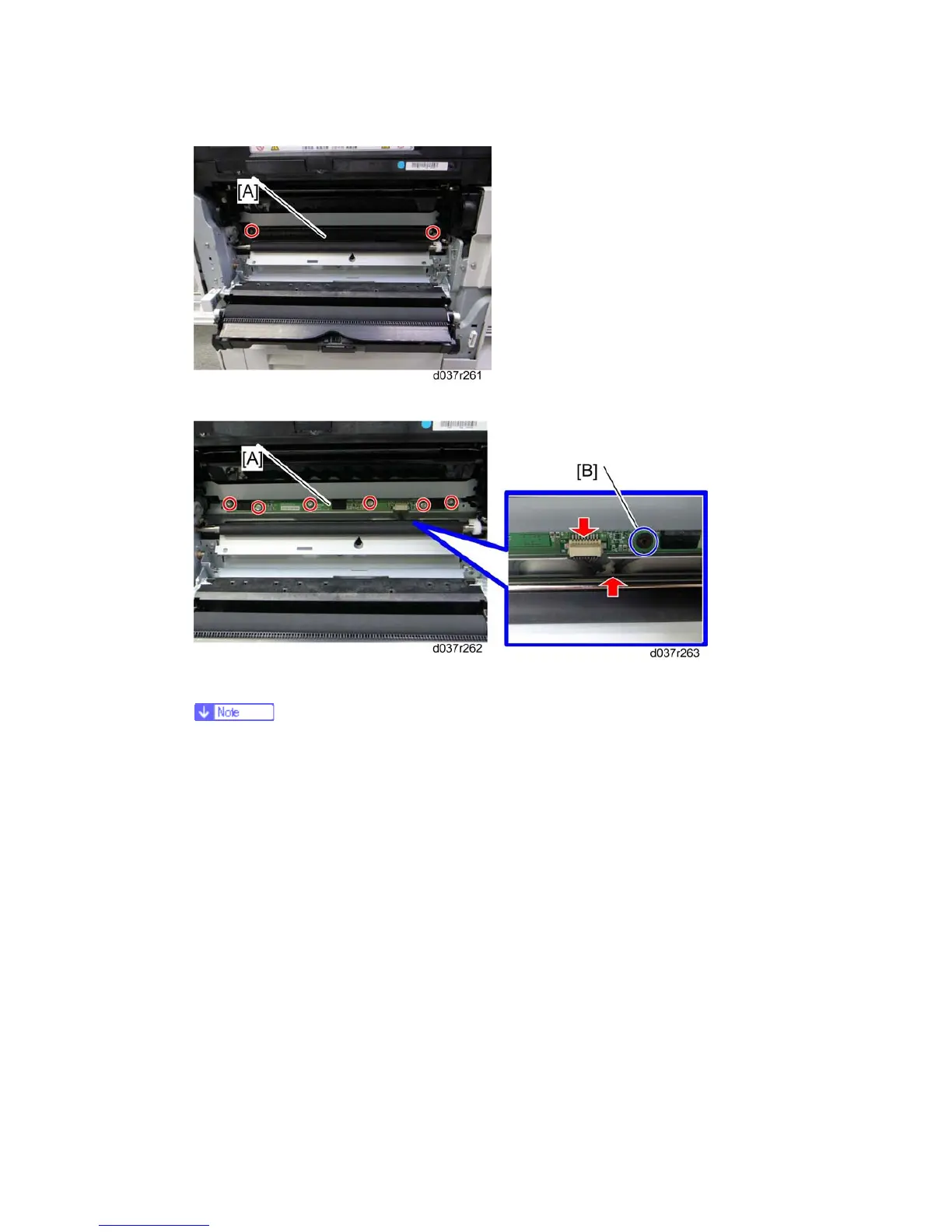

3. ID sensor cover [A] ( x 2)
4. ID sensor board [A] ( x 6, , = x 1, x 1)
If the black spacer [B] is stuck to the sensor board as shown above, remove
all black spacers. These black spacers should be used when a new ID sensor
board is installed.
Cleaning for ID sensors
ID sensors require cleaning maintenance every EM. Do the following steps for ID sensor
cleaning.
1. PCDU: K ( Section: PCDU (Photo Conductor and Development Unit))
2. ITB unit ( Section: ITB (Image Transfer Belt) Unit)
