Ricoh D037 - VM Card Type I (D038;D041 Only)

Controller Options
D037/D038/D040/D041 2-106 SM

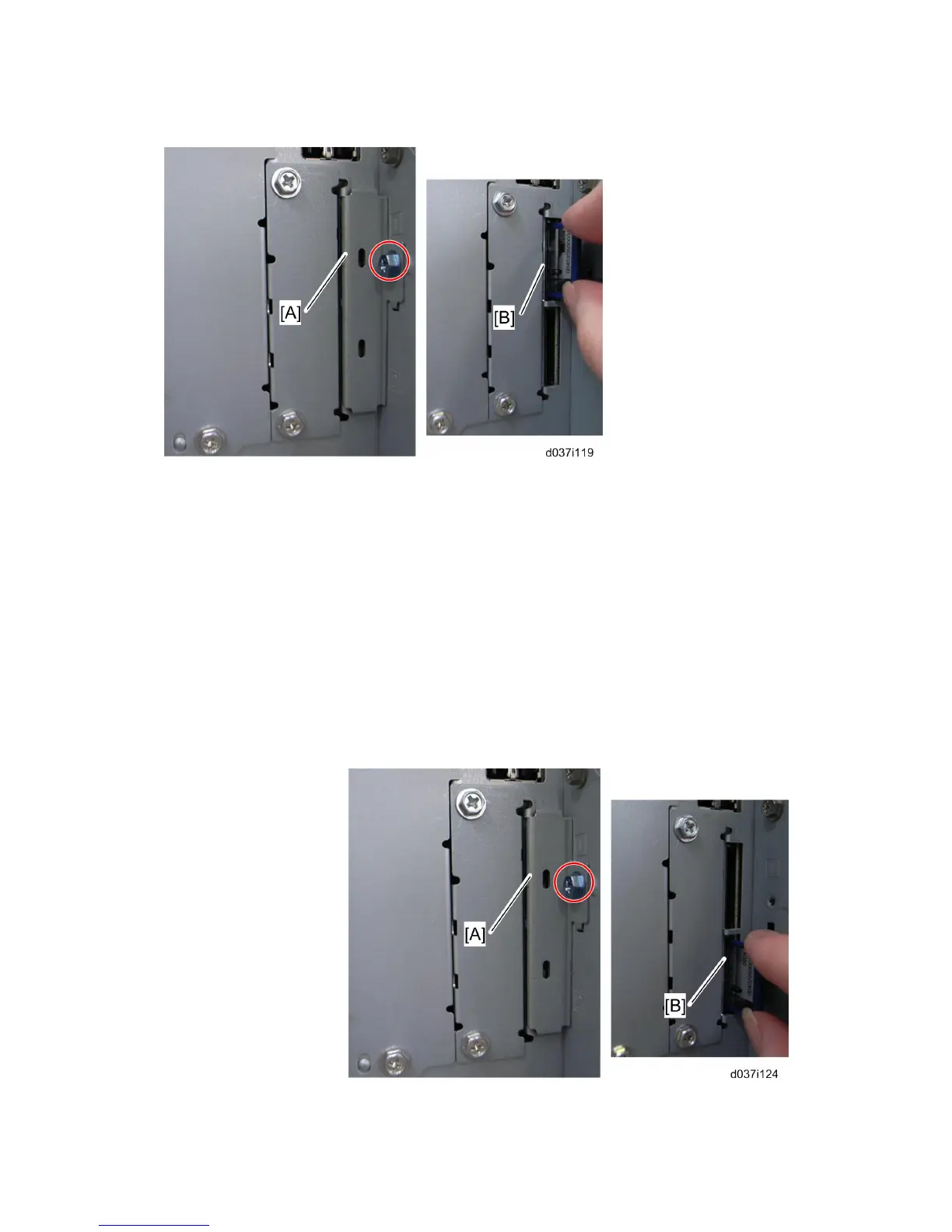

1. Remove the SD-card slot cover [A] for SD cards ( x 1).
2. Turn the SD-card label face to the rear of the machine. Then push it slowly into slot 1
[B] until you hear a click.
3. Attach the SD-card slot cover [A] ( x 1).
4. Make sure that the machine can recognize the option (see ‘Check All Connections’ at
the end of this section).
2.22.11 VM CARD TYPE I (D038/D041 ONLY)
IMPORTANT: Whenever installing an SDK application on this model (e.g. the VM Card or
Browser Unit), the Memory Unit Type I: 512MB must also be installed.
Installation Procedure
1. Switch the machine
off.
2. Remove the SD card
slot cover [A] ( x1).
3. Insert the SD card [B]
into slot 2.
⇒
Rev. 02/2009
