Ricoh D037 - Memory Unit Type I 512 Mb (D038;D041 Only)

Controller Options
SM 2-111 D037/D038/D040/D041
Installaion
1. Remove the I/F-slot cover [A] from the I/F-slot ( x 2).
2. Install the Gigabit Ethernet board [B] (Knob-screw x 2) into the I/F-slot.
3. Attach the two caps to the Ethernet (10/100 Base-T) ports as shown above.
4. Attach the ferrite core [A] to the LAN cable [B] as shown above, and connect the LAN
cable to the machine.
5. Connect the USB cable to the USB connector.
6. Make sure that the machine can recognize this option (see ‘Check All Connections’ at
the end of this section).
2.22.14 MEMORY UNIT TYPE I 512MB (D038/D041 ONLY)
 Unplug the main machine power cord before you do the following procedure.
1. Rear cover ( Section: Rear Cover)
2. Controller box cover ( Section: Controller Box Cover)
3. HDD bracket ( Section: HDD (Only for D038/D041)

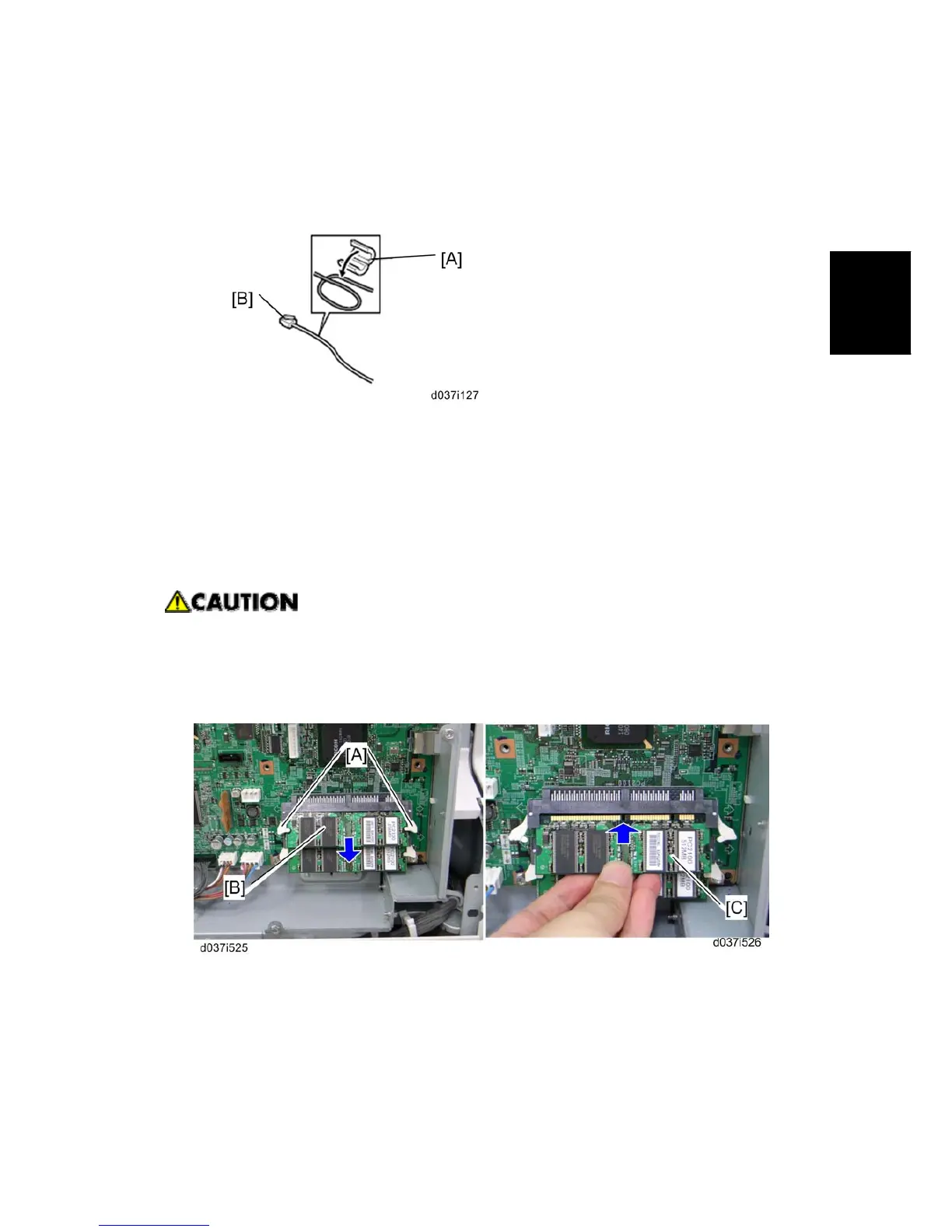

4. Unlock the lock levers [A].
5. Remove the installed memory [B] (256 MB).
6. Push the memory unit [C] (512 MB) until both lock levers lock the memory unit.
7. Reassemble the machine.
