4.15 ELECTRICAL COMPONENTS
4.15.1 BOARDS

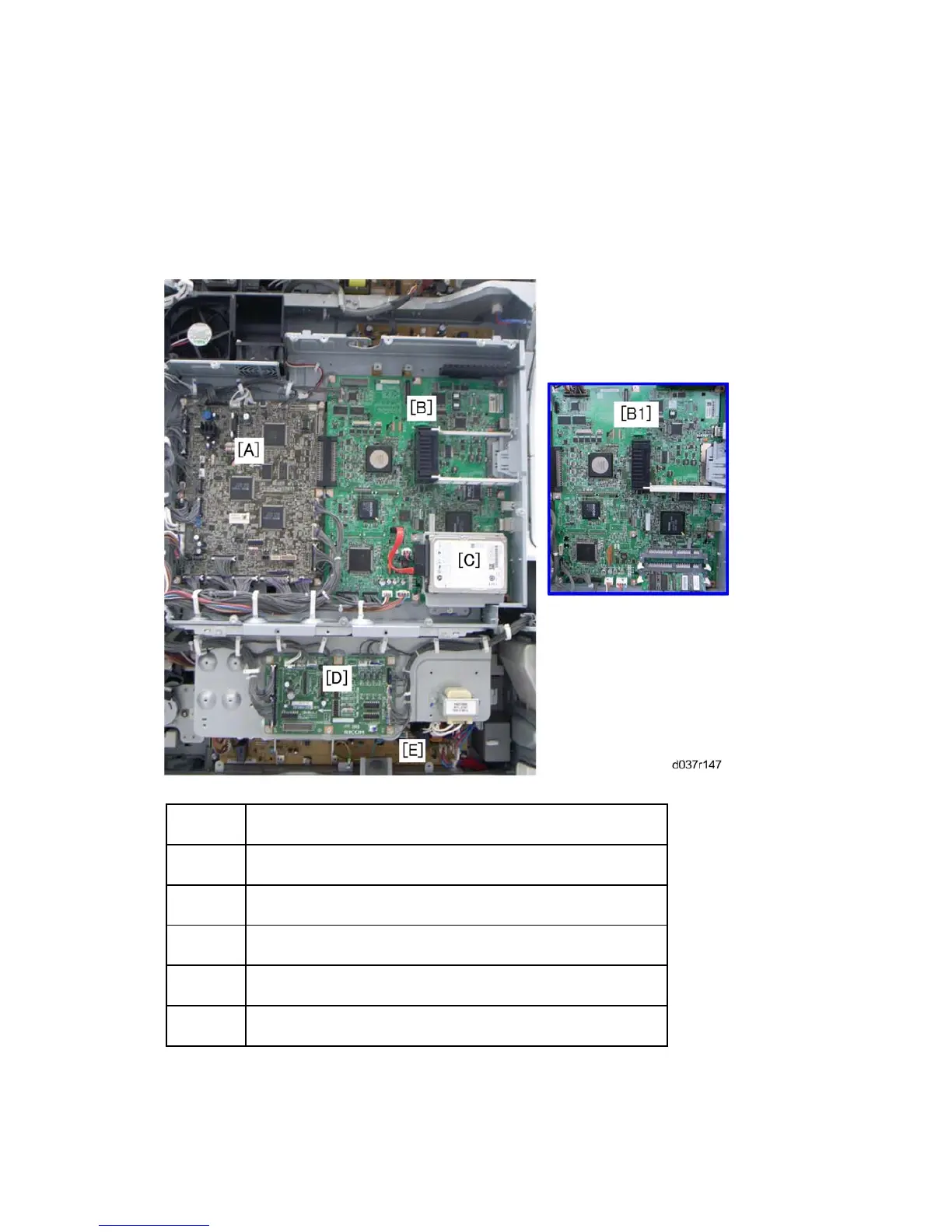

Controller Box Closed
[A] BCU
[B] i-Controller Board (D038/D041)
[B1] i-Controller Board (D037/D040)
[C] HDD (D038/D041 only)
[D] DRB
[E] PSU
Controller Box Open
