Image Creation
D037/D038/D040/D041 4-56 SM

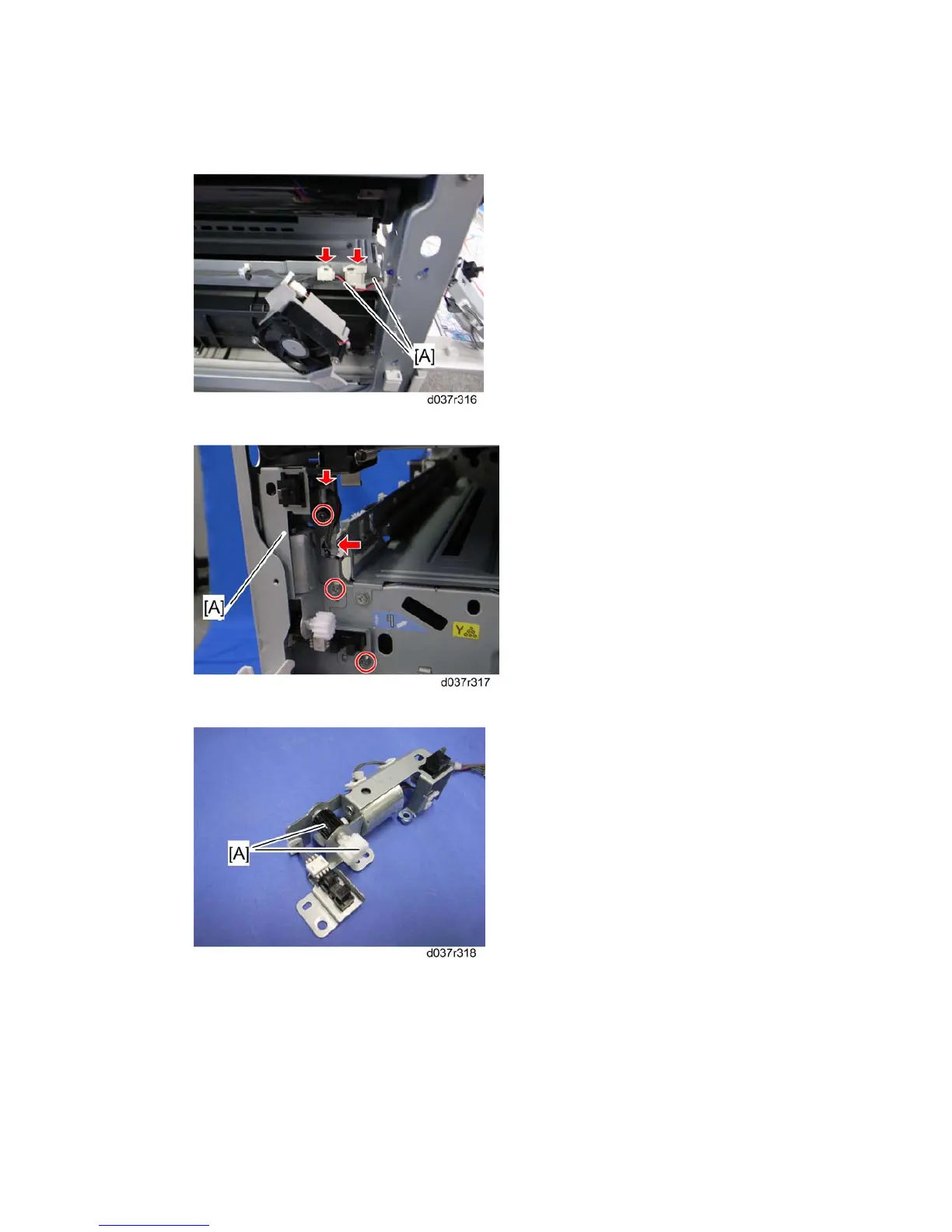

4. Ventilation Fan: Front ( Ventilation Fan)
5. Disconnect two harnesses [A].
6. Toner collection motor assembly [A] (= x 2, x 3)
7. Gears [A] ( x 1)
