Ricoh D148 - Page 168

To Next Page

To Previous Page

Punch Unit PU3060

SM 2-97 D146/D147/D148/D149/D150

Installation

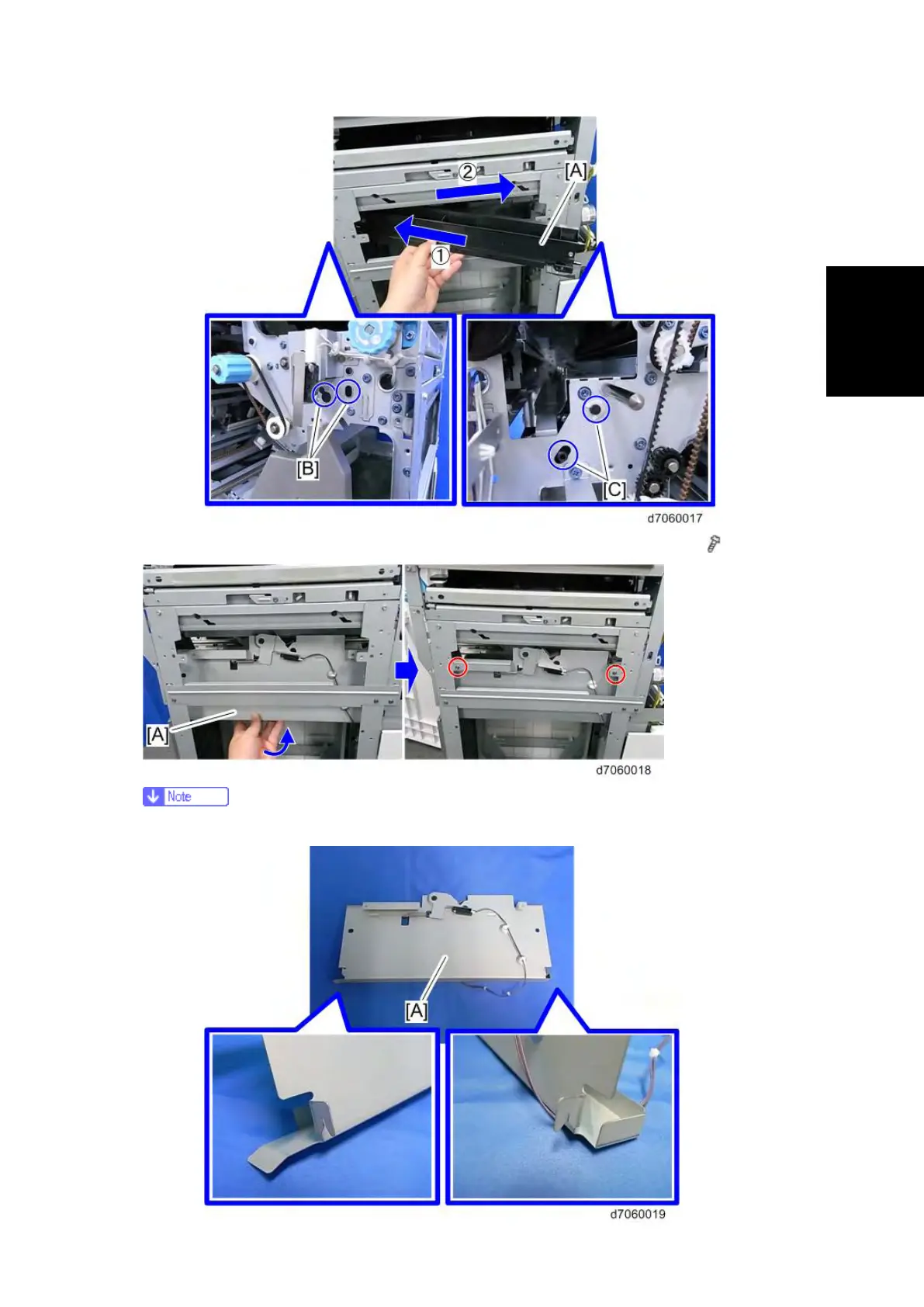

7. Attach the hopper bracket [A], inserting from the outside frame of the finisher. (

×2, 2 hooks)

§ Hook the hooks of the hopper bracket onto the back side of the frame.
