SD card for NetWare printing Type M4/M3

SM 2-183 D146/D147/D148/D149/D150

Installation

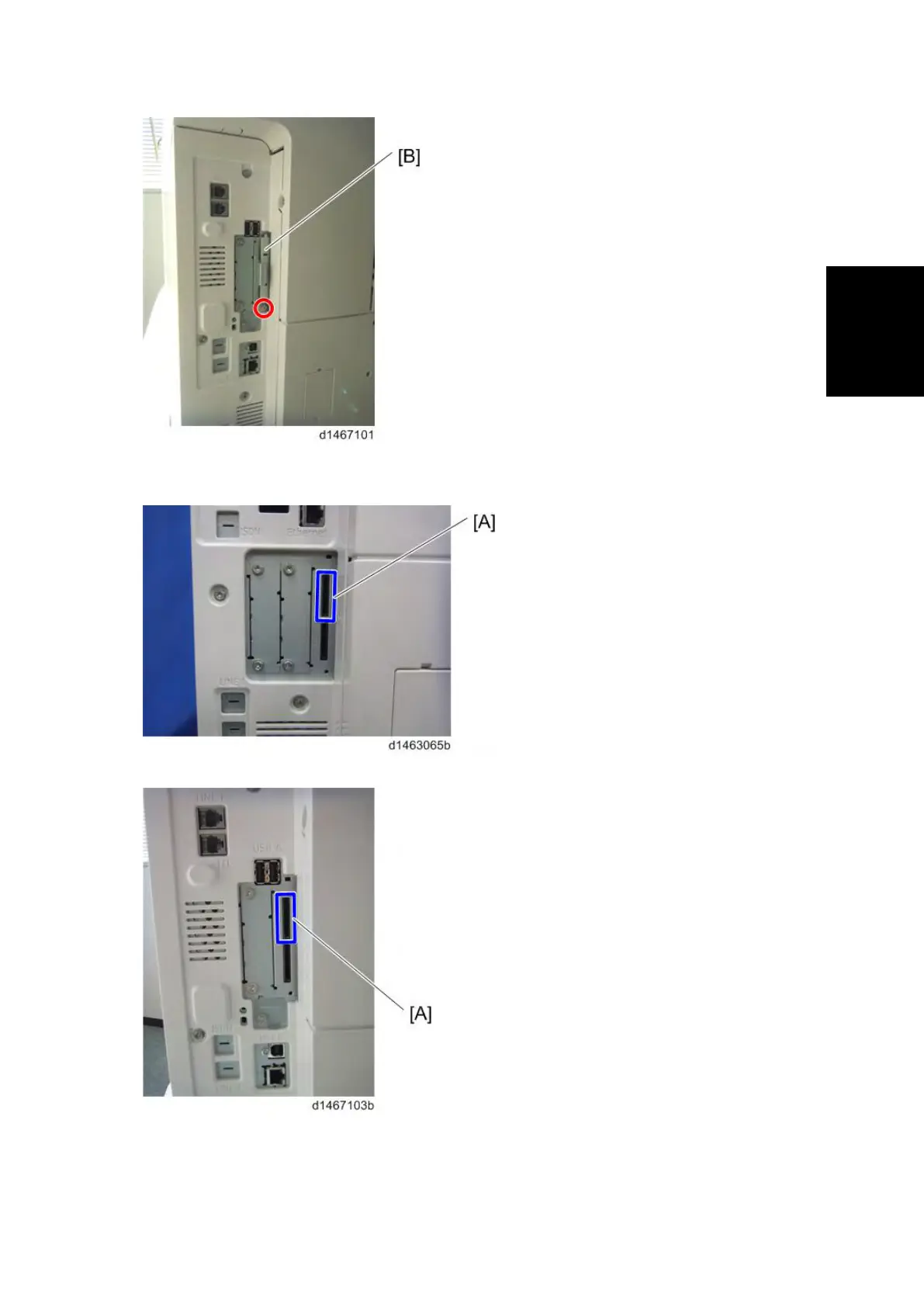

2. Put the SD card for NetWare printing in SD card slot 1 [A].

D148/D149/D150:

D146/D147:
