Ricoh G104 - Drive Layout

OVERVIEW
SM 6-3 G104
Detailed
Descriptions

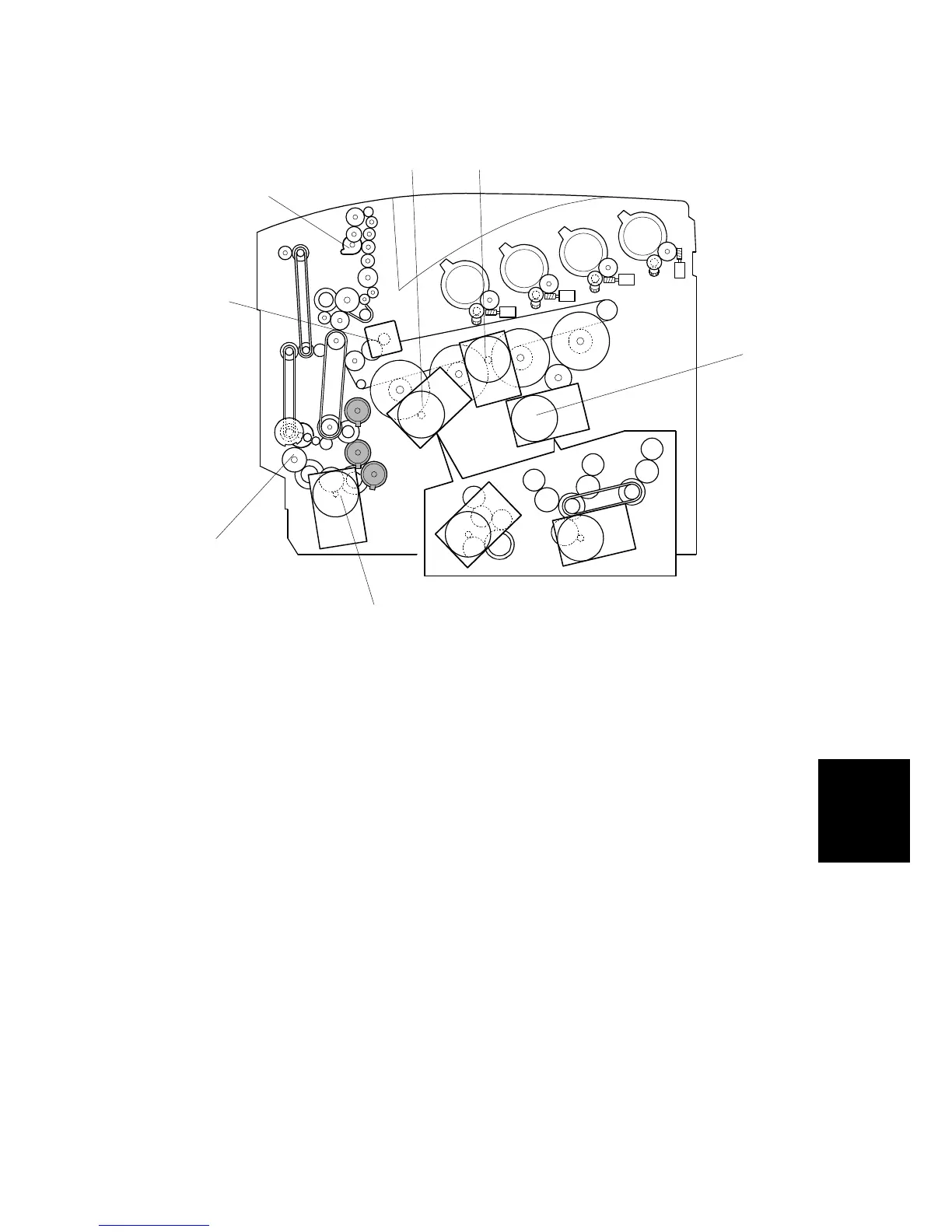

6.1.3 DRIVE LAYOUT
1. Black OPC/ Development Motor:
This controls the black OPC and development unit for black.
2. Color OPC Motor:
This controls the OPCs for magenta, cyan, and yellow.
3. Color Development Motor:
This controls the color development units (magenta/cyan/yellow).
4. Paper Feed/ Fusing Motor:
This controls the paper feed mechanisms (tray 1/by-pass tray), fusing unit,
paper, registration roller, transport relay roller and paper exit roller.
5. Transfer Belt Unit Motor:
This controls the transfer belt unit and the transfer roller.
6. Duplex Motor:
This controls the duplex exit, relay and exit rollers.
7. Inverter Motor:
This controls the inverter roller.
G105V103.WMF
1 2
3
4
5
6
7
