Overview
SM 6-3 G160/G161
G160/G161

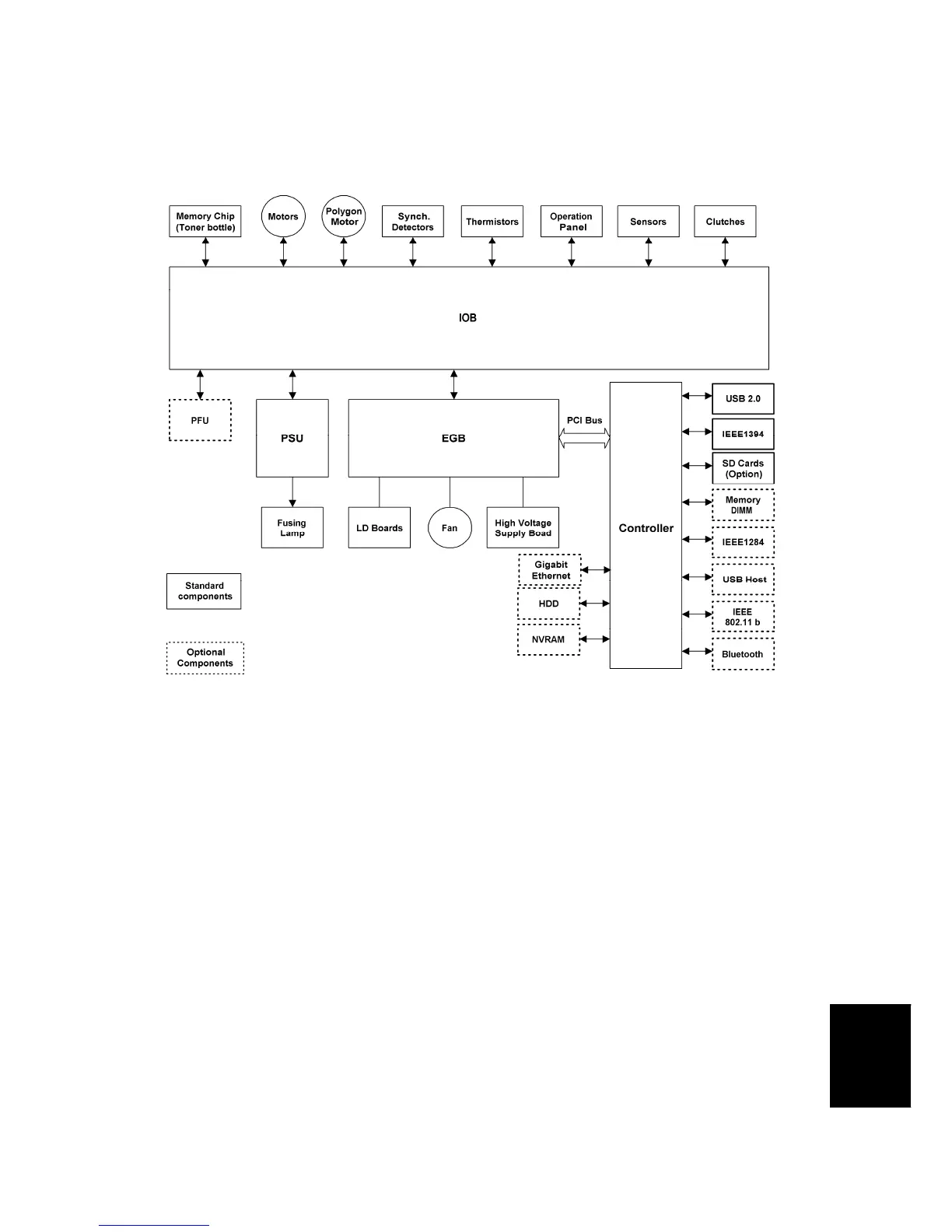

6.2.2 BOARD STRUCTURE
The EGB (Engine Board) controls machine functions along with the CTL (Controller). The
IOB (In/Out Board) controls input/output, drivers and input/output connections. The IOB is
part of the EGB expansion board.
You can only install two of the optional interface boards (IEEE1284, IEEE802.11b,
Bluetooth, USB Host and Gigabit Ethernet) at the same time. (You can not install
IEEE802.11b and Bluetooth at the same time.)
The controller connects to the EGB through the PCI Bus (Peripheral Component
Interconnect Bus).
1. EGB (Engine Board):
This controls the Engine, the controller interface, image processing, MUSIC (Mirror Unit for
Skew and Interval Correction), and input/output. MUSIC is also called Automatic Line
Position Adjustment).
2. IOB (Input/Output Board):
This controls input/output, and the interfaces with the optional units, and the operation
panel.
3. Controller:
