Ricoh SR5050 - Positioning Roller Motor

Positioning Roller Motor

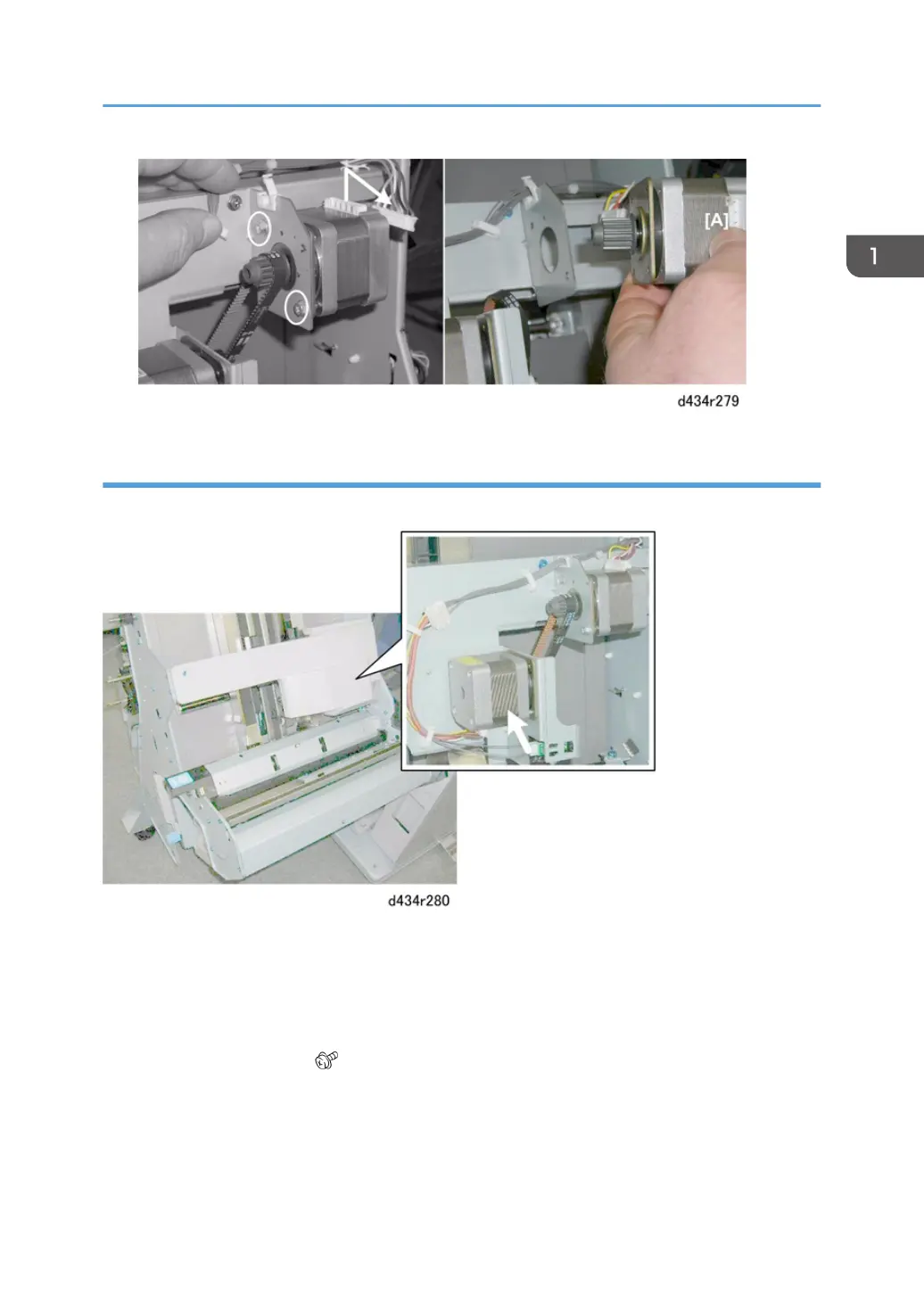

The positioning roller motor is under the motor cover on the right side of the stack/staple unit.
Preparation
• Open the front door.
• Pull out the stack/staple unit with handle Rb12.
• Right panel (page 24)
1. Remove motor cover [A] ( x2)
Corner Stapler Unit
109
