Ricoh SR5050 - Top Rear Cover; Shift Tray Jogger Unit

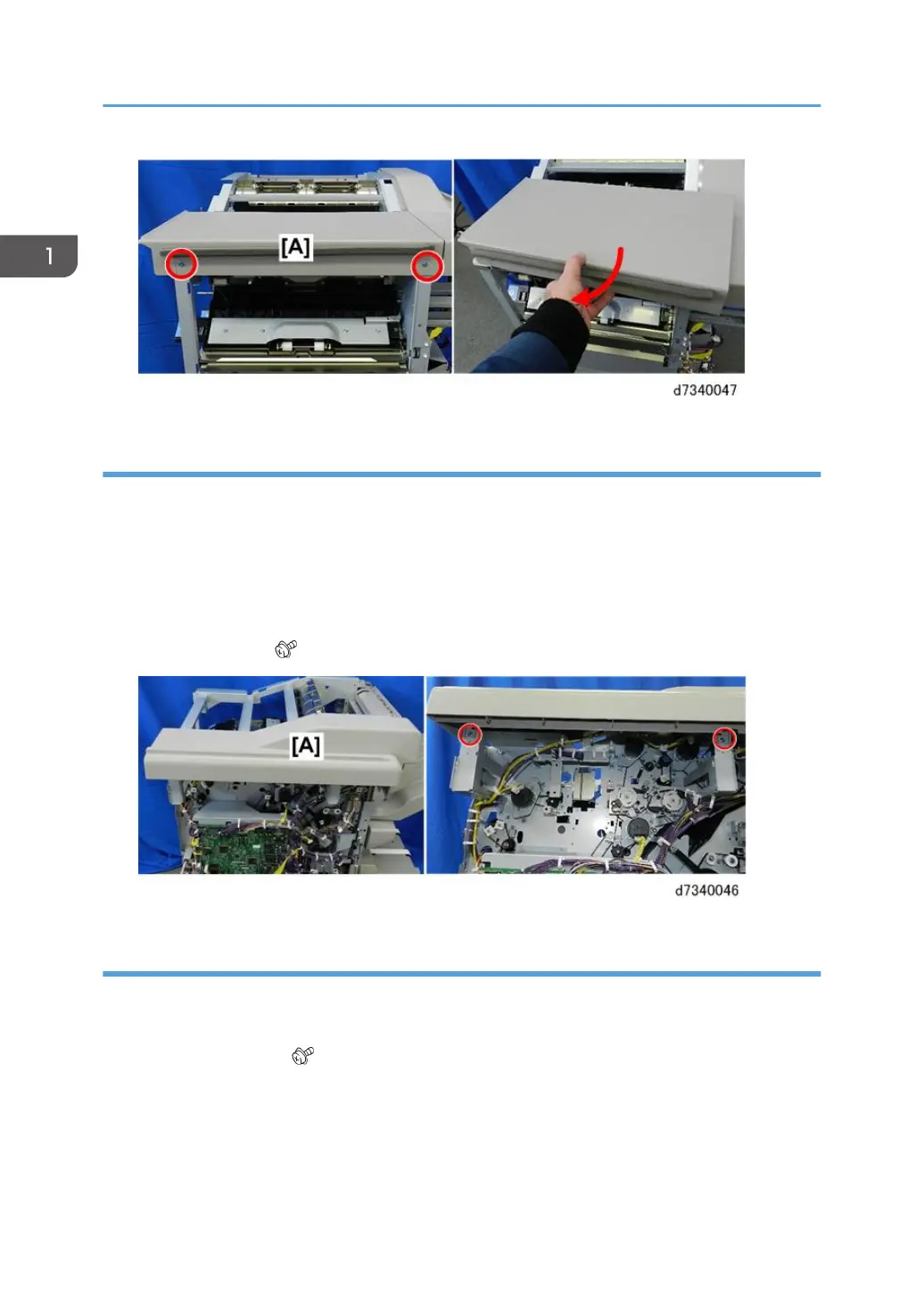

Top Rear Cover
Preparation
Remove:
• Proof tray (page 20)
• Top right cover (page 21)
• Rear upper cover (page 15)
1. Top rear cover [A] (
x2).
Shift Tray Jogger Unit
1. Top rear cover page 22)
2. Remove:
[A] Jogger unit cover ( x2)
1. Replacement and Adjustment
22
