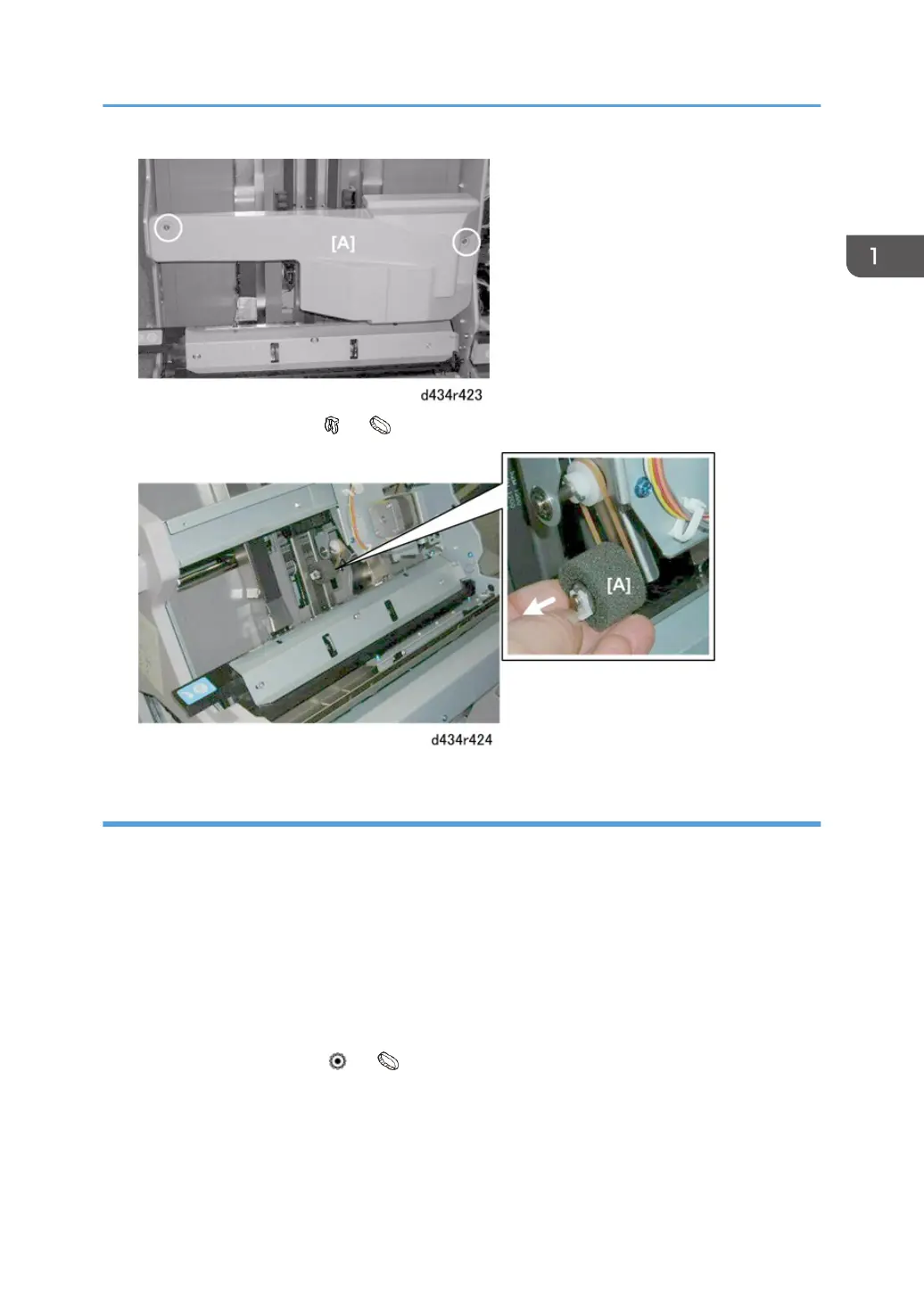

2. Replace sponge roller [A] ( x1, x1)
Alignment Brush Roller
Preparation
• Open the front door.
• Lower inner cover Rb10, Rb11 (page 17)
• Center inner cover Rb14, Rb 16 (page 18)
• Right panel (page 24)
Rear
1. Remove gear [A].
2. Remove gear and bushing ( x1, x1, Bushing x1)
Rollers and Brushes
