Ricoh SR5050 - Registration; Registration Motor

Registration
Registration Motor
Preparation
Remove:
• Rear upper cover (page 15)

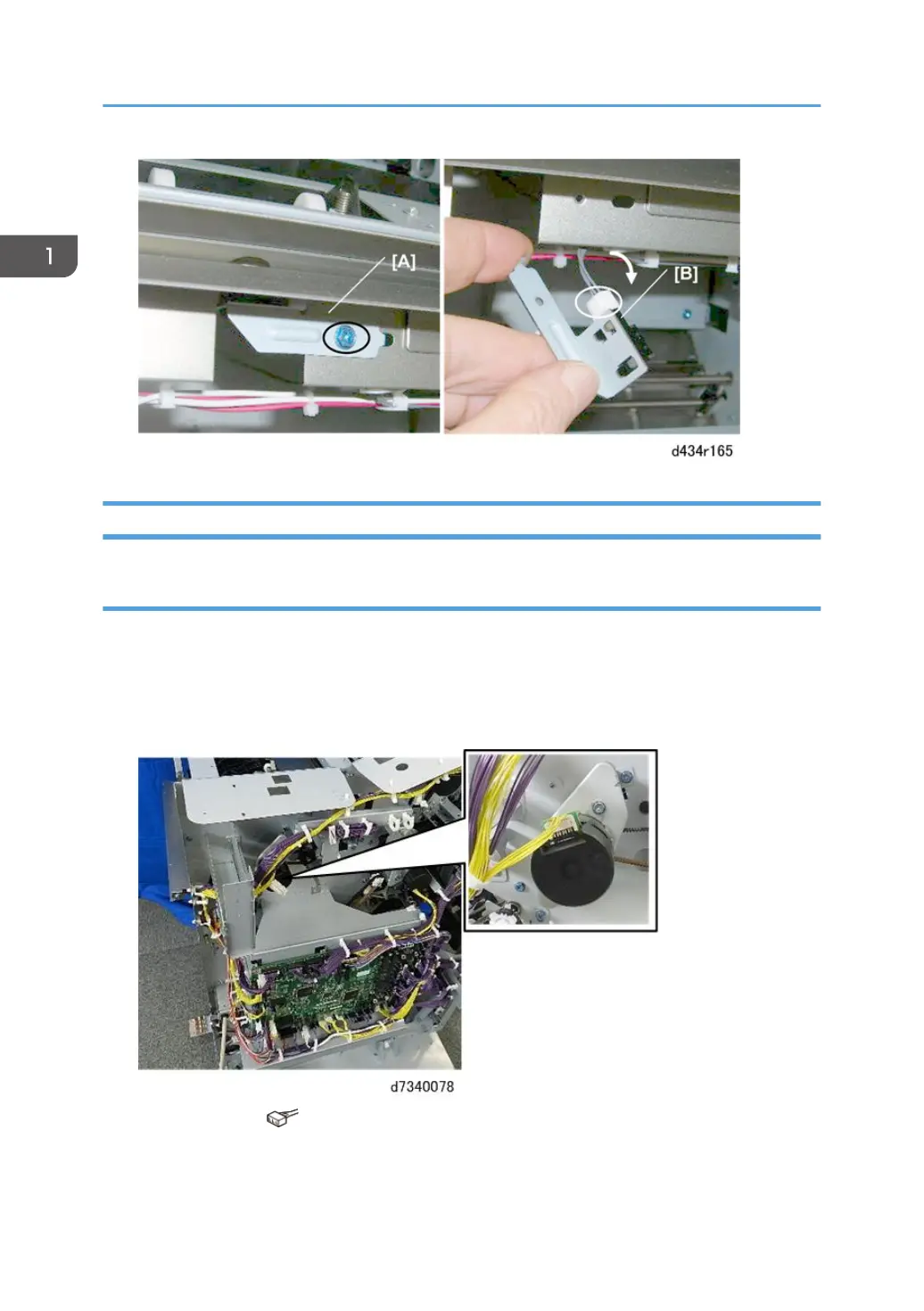

1. The registration motor above the main board bracket at the rear.
2. Disconnect motor ( x1).
1. Replacement and Adjustment
50
