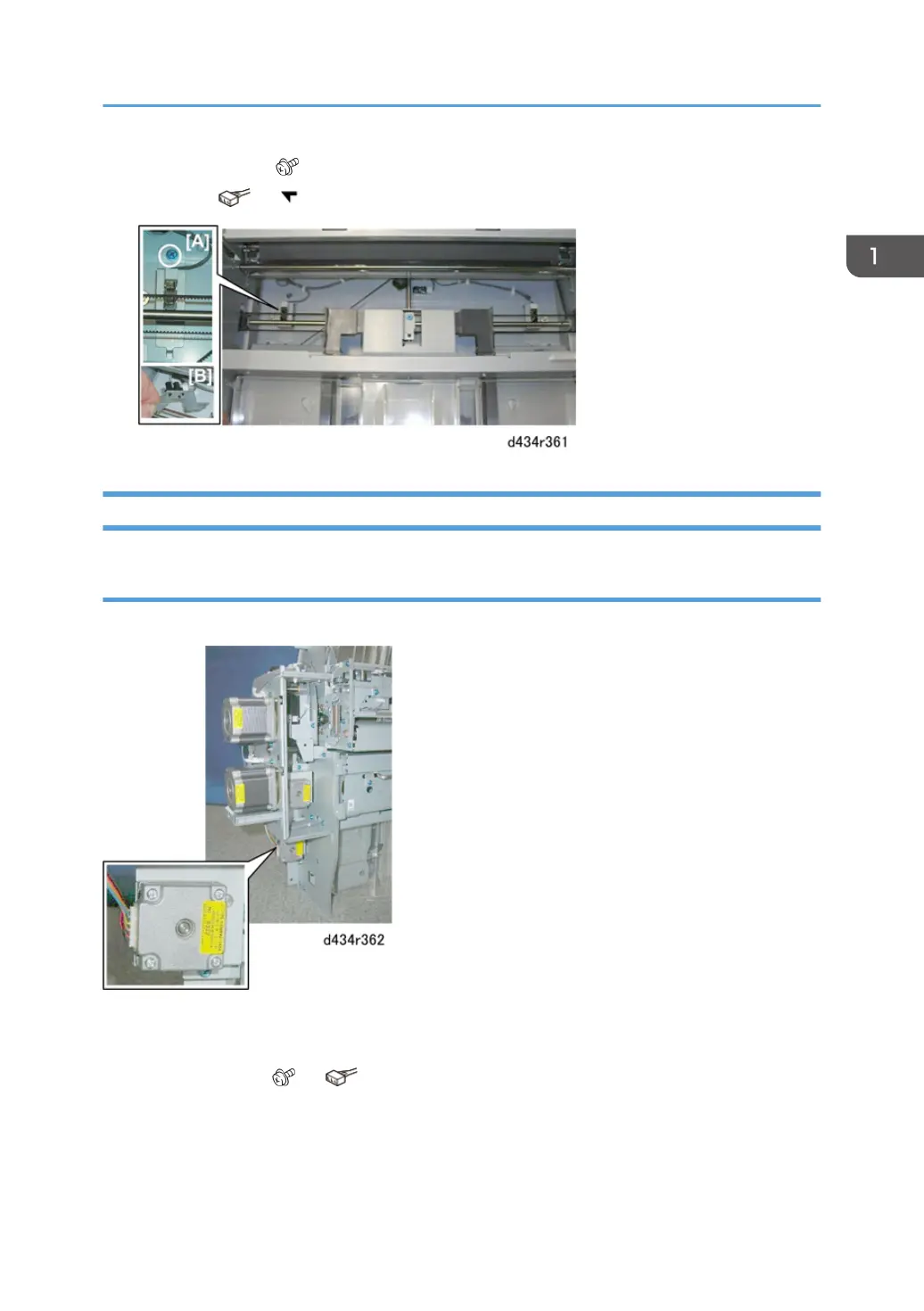

Ricoh SR5050 - Booklet Bottom, Top Jogging; Booklet Stapler Bottom Fence Motor

[A] Sensor bracket ( x1)
[B] Sensor ( x1, x5)
Booklet Bottom, Top Jogging
Booklet Stapler Bottom Fence Motor
The booklet stapler bottom fence motor is on the back of the booklet unit.
Preparation
• Booklet unit (page 29)
1. Remove motor [A] ( x2, x1).
Booklet Unit
139
