Ricoh SR5050 - Booklet Unit Removal

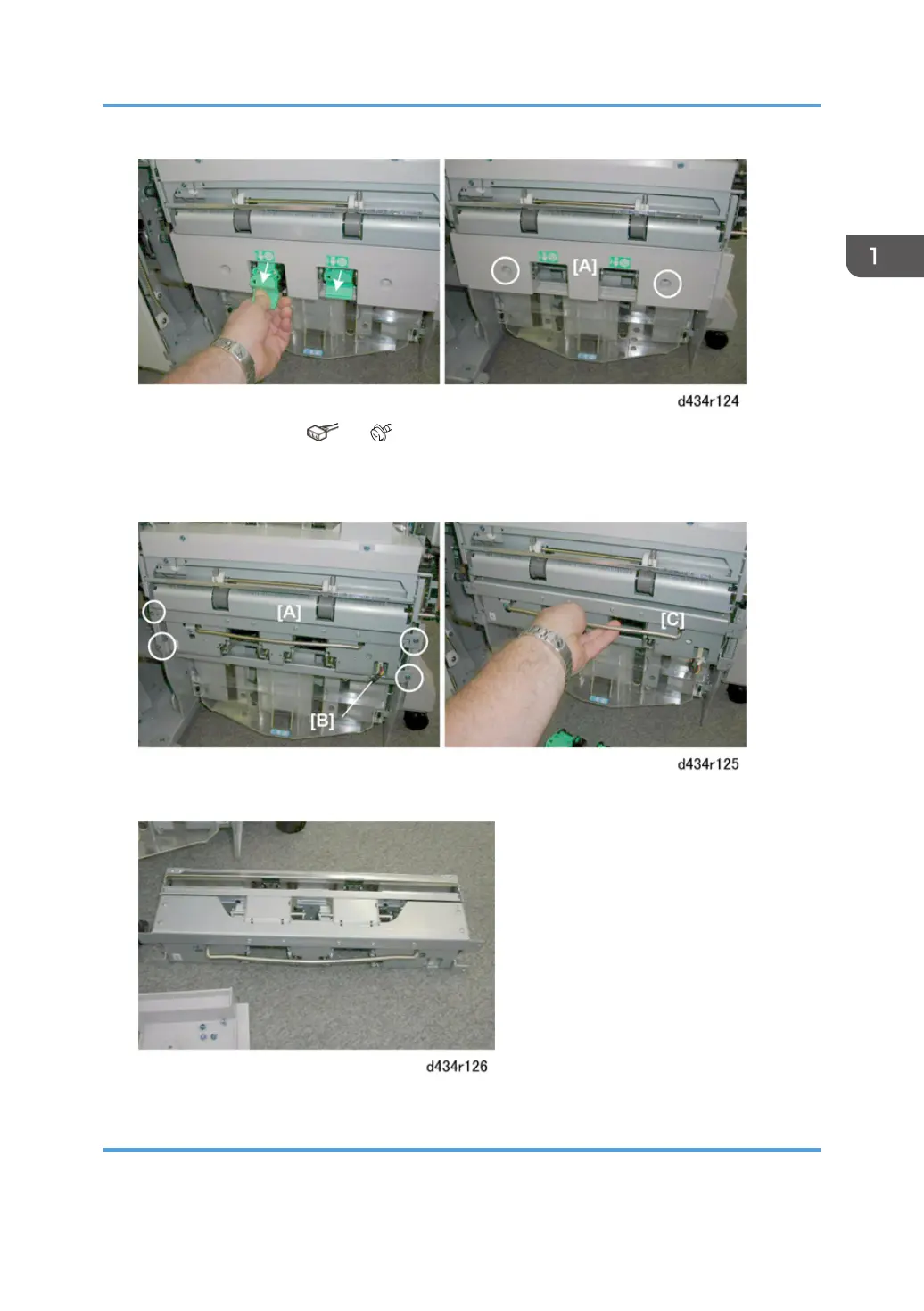

3. Remove stapler unit [A] ( x1, x4)
4. Make sure connector [B] is disconnected.
5. Remove the stapler unit with its handle [C].
6. Lay the unit on a flat, clean surface.
Booklet Unit Removal
Preparation
Common Procedures
29
