Ricoh SR5050 - Corner Stapler Entrance

Corner Stapler Entrance
Preparation
• Open the front door.
• Pull out the stack/staple unit with handle Rb12.

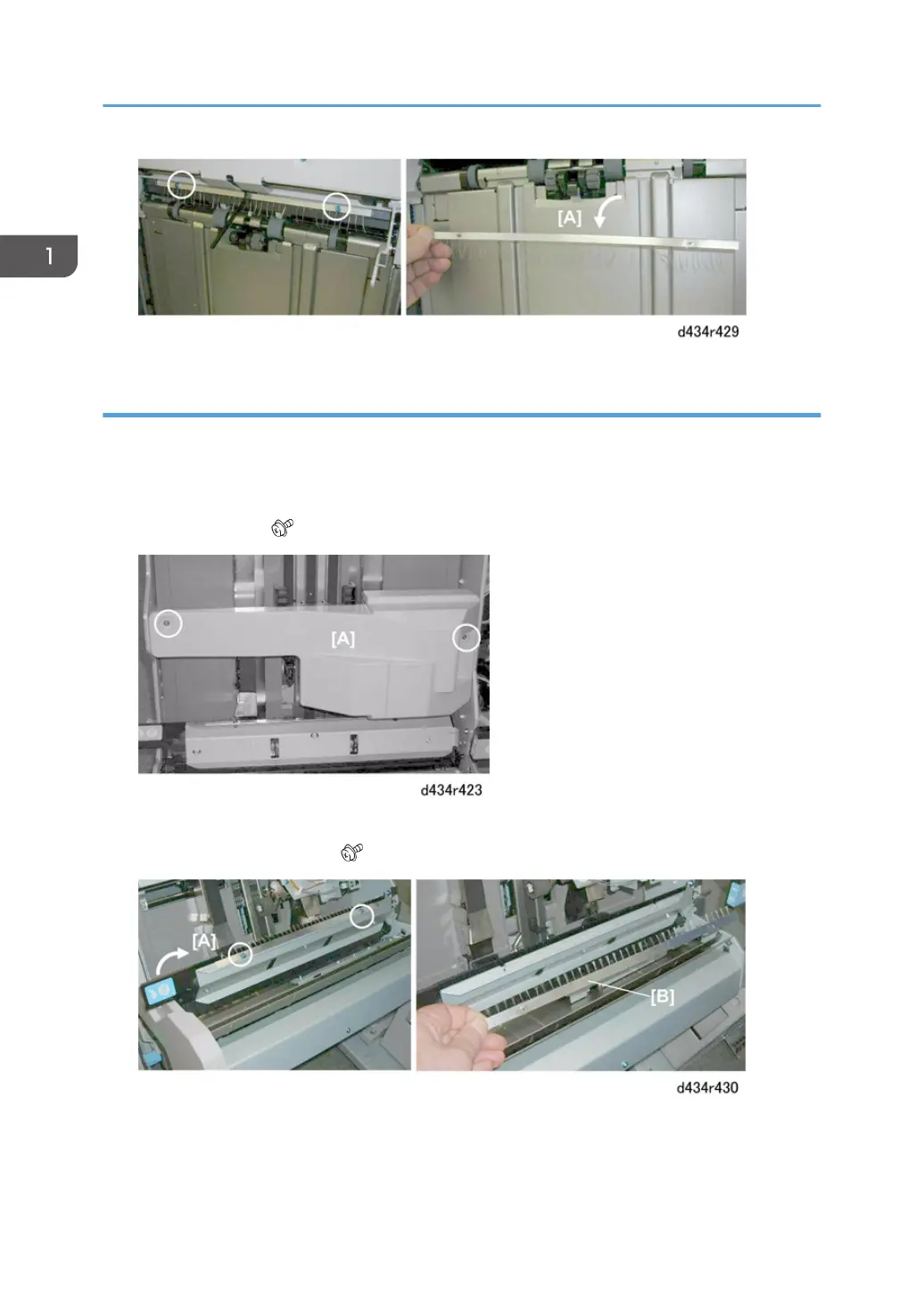

1. Remove cover [A] ( x2)
2. Raise Rb13 [A].
3. Remove discharge brush [B] ( x2)
1. Replacement and Adjustment
172
