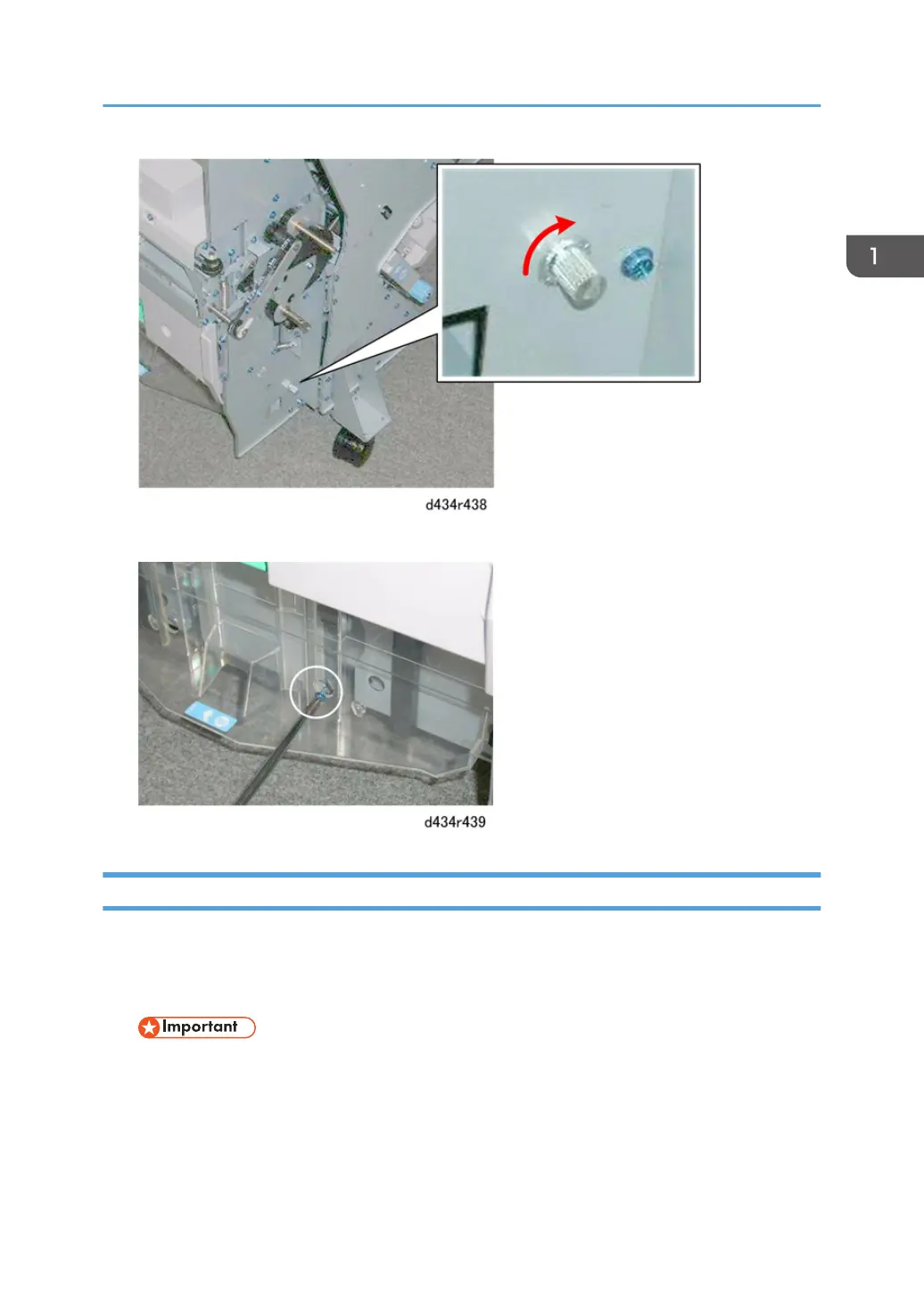

2. Re-attach the screw at the front hole.
Vertical Skew Adjustment
The booklet unit is adjusted for optimum performance before the finisher is shipped from the factory. Do
this adjustment only if the edges of folded booklets are not even.
1. Switch the main machine and do a test run for booklet folding with either A3 or DLT paper
• This procedure shows you how to test and adjust vertical skew for A3/DLT paper.
• This same adjustment can be done for other paper sizes as well with SP6201.
2. Look at the paper and determine what kind of skew (if any is present).
3. Referring to the diagram, determine if the skew is positive or negative.
Special Adjustments
177
