Ricoh SR5050 - Fold Plate Cam HP Sensor

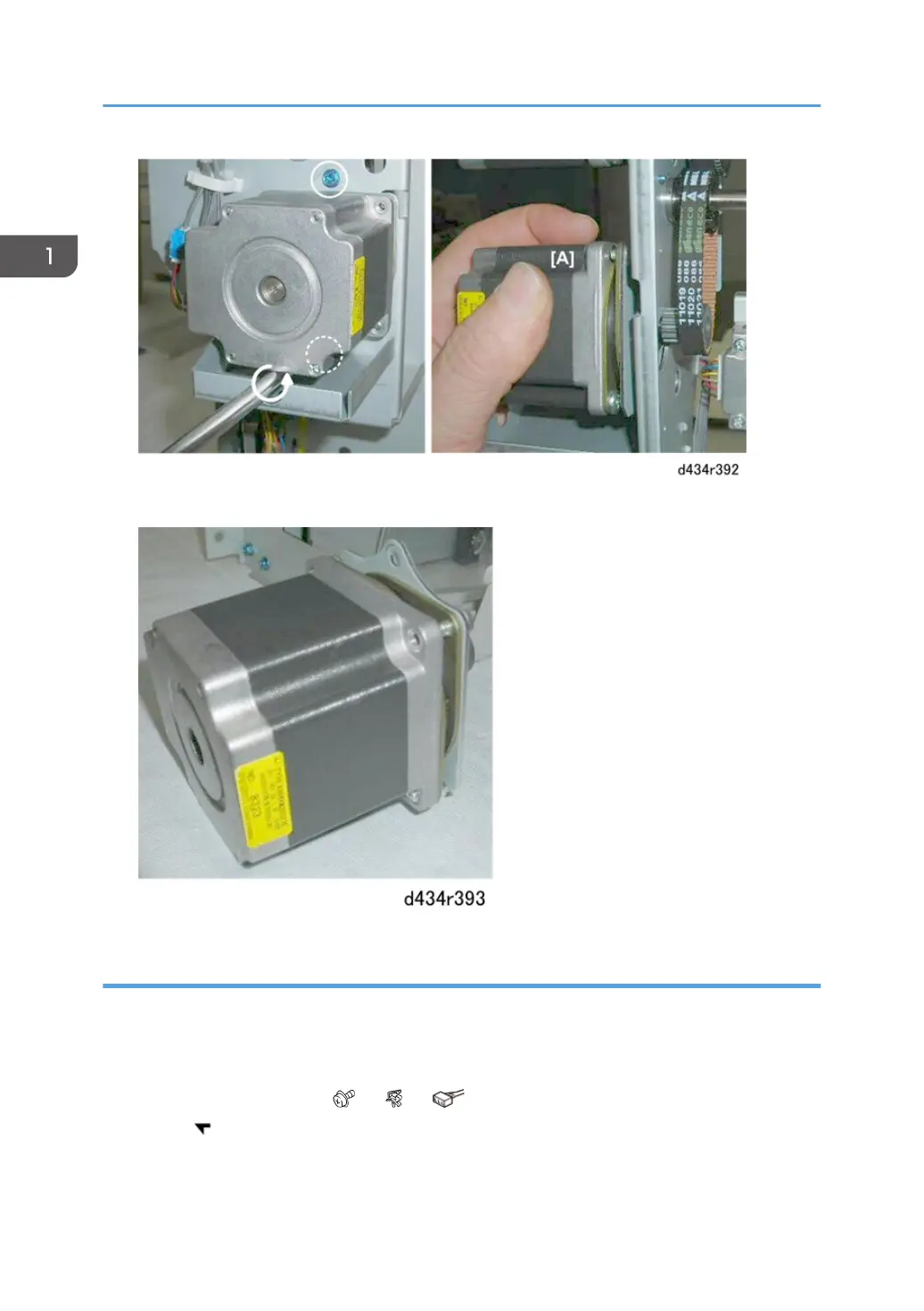

2. Remove the motor.
Fold Plate Cam HP Sensor
Preparation
• Booklet unit (page 29)
• Fold roller motor (described in the previous section)
1. Remove sensor bracket [A] ( x1, x1, x1).
2. Sensor ( x5)
1. Replacement and Adjustment
