Ricoh SR5050 - Stack JG HP Sensor

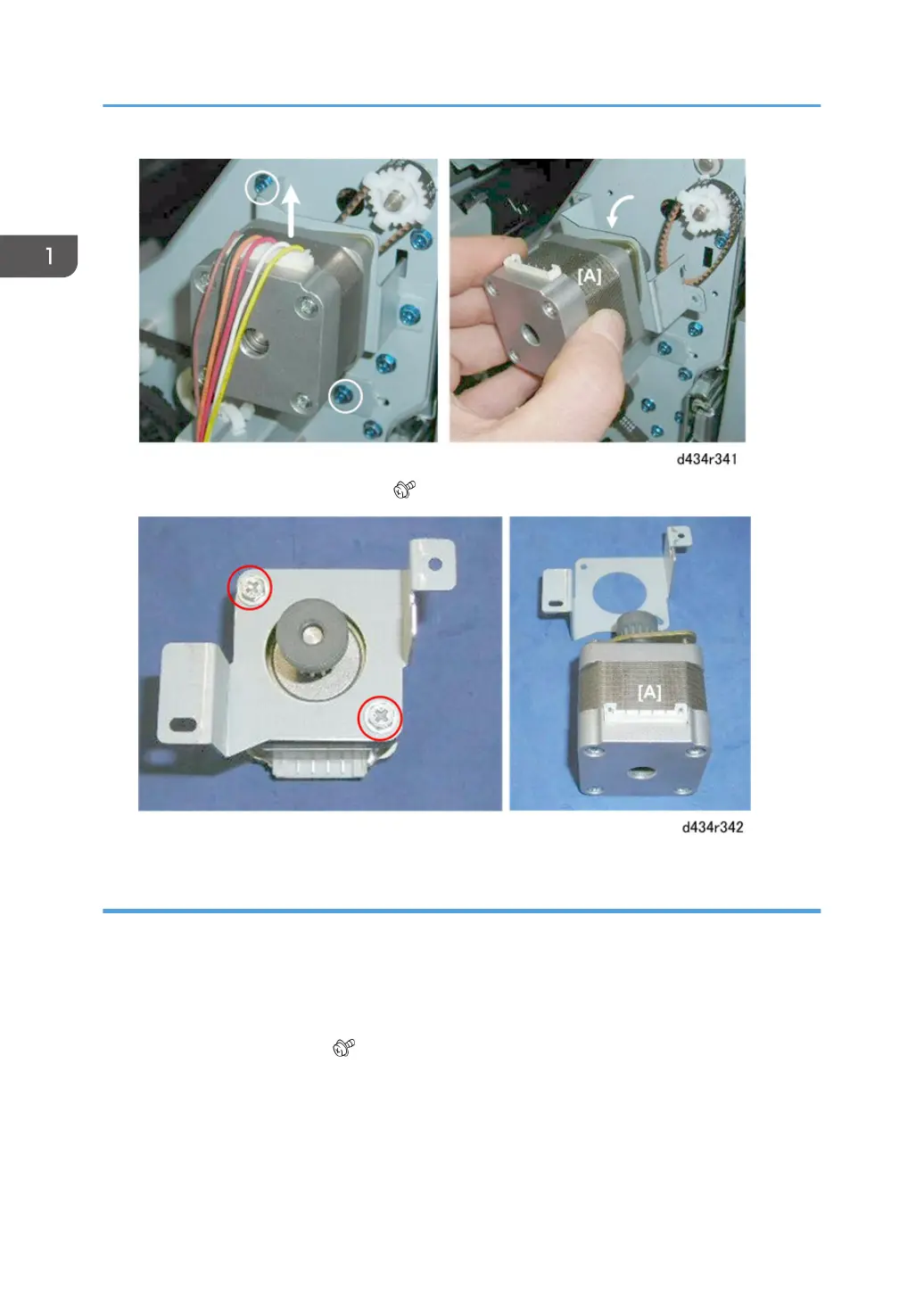

2. Separate the bracket and motor [A] ( x2).
Stack JG HP Sensor
Preparation
• Rear upper cover (page 15)
1. If the actuator [A] is in the gap of the sensor, rotate gear and belt [B] until the actuator is out of the
gap.
2. Remove sensor bracket [C] ( x1).
