Ricoh SR5050 - Left Upper Cover

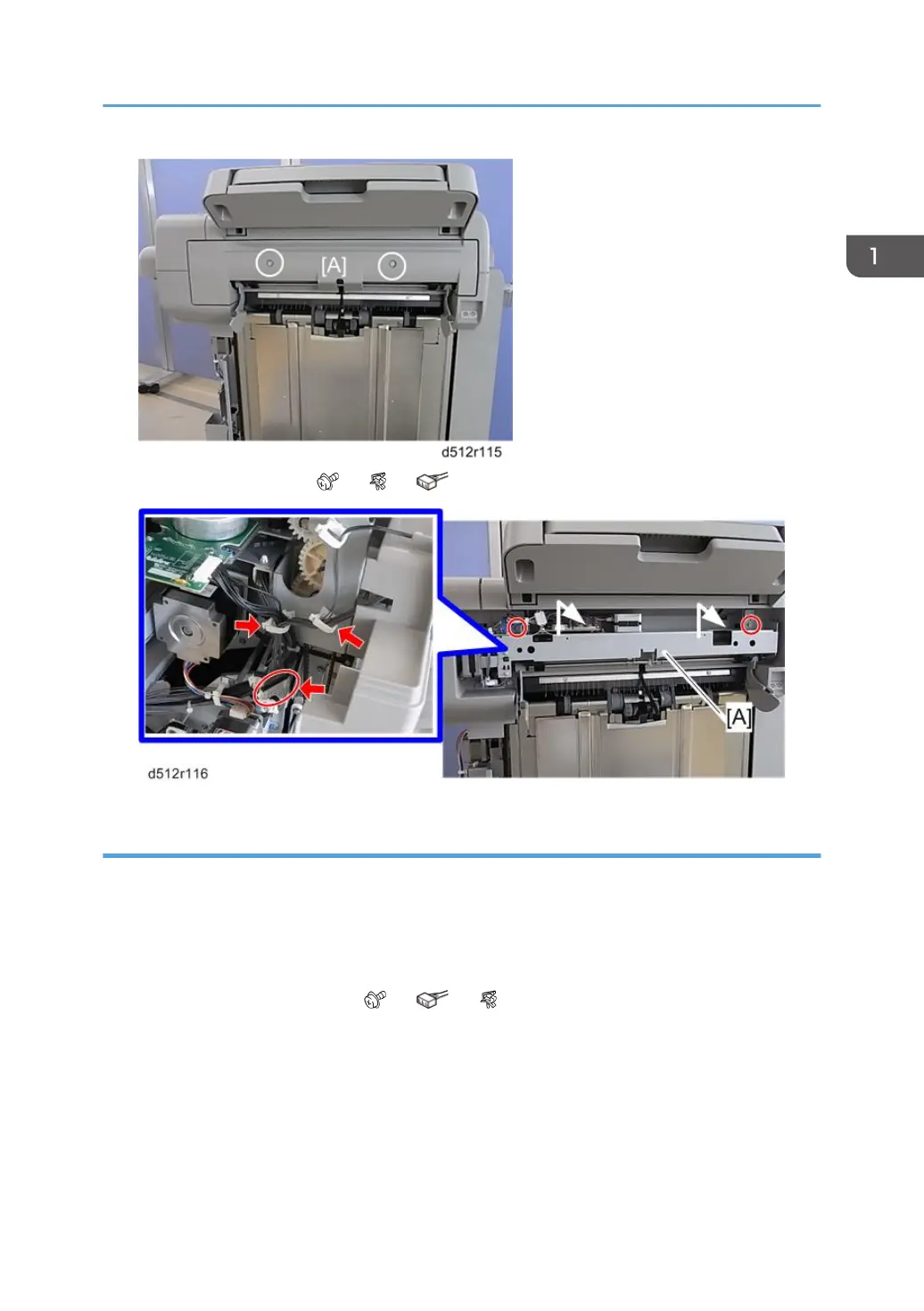

3. Lift the jogger unit [A] off ( x2, x2, x1).
Left Upper Cover
Preparation
Remove:
• Proof tray (page 20
• Shift tray jogger unit (page 22)
1. Remove the left upper cover [B] ( x2, x1, x2).
Common Procedures
23
