Ricoh SR5050 - Shift Tray; Shift Tray Side-To-Side Movement; Shift Motor

Shift Tray
Shift Tray Side-to-Side Movement
Shift Motor
Preparation
• Remove end fence (page 33)

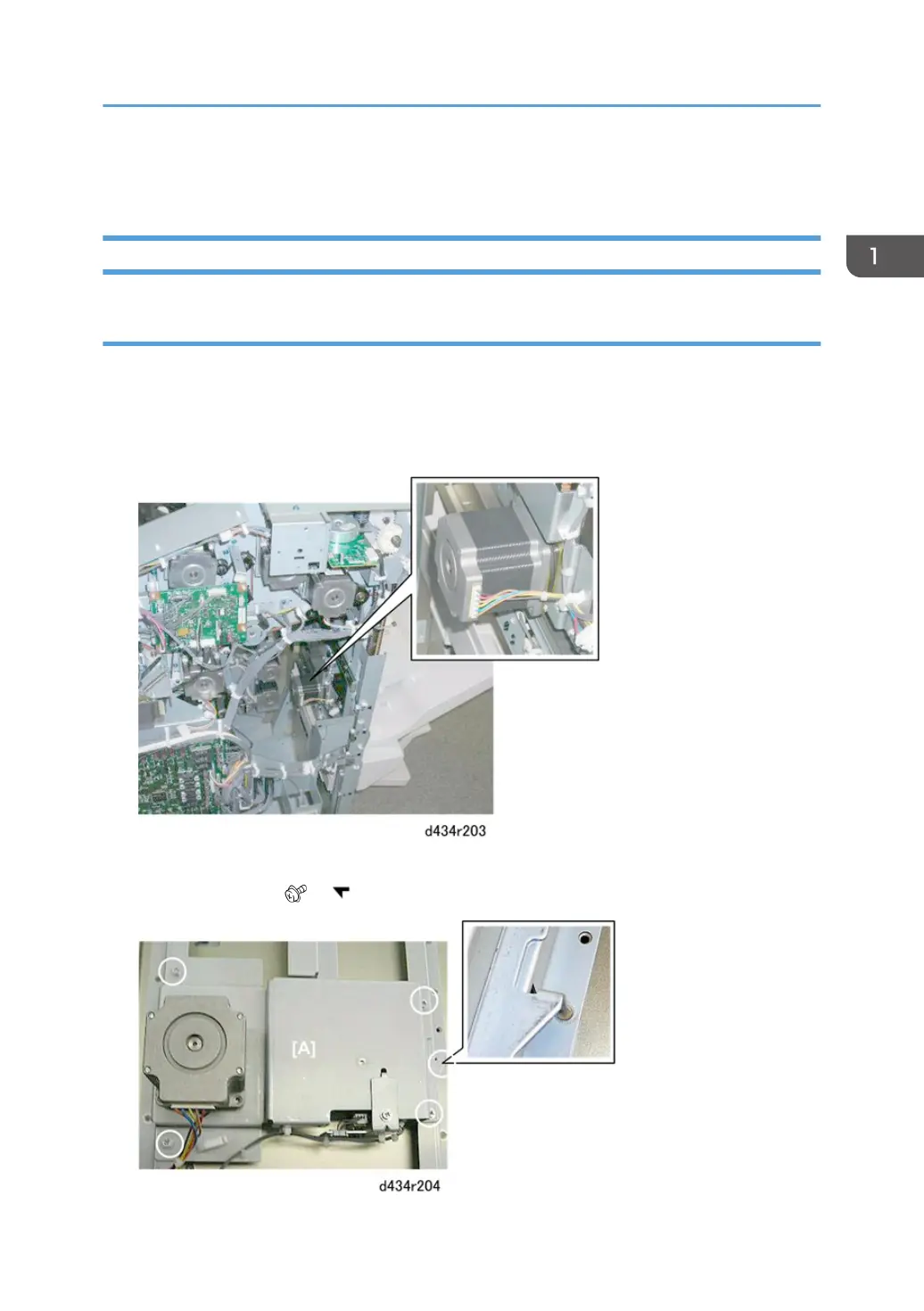

1. The shift motor is visible inside the machine, but the end fence must be removed for servicing this
motor.
2. Lay the end fence on a flat surface.
3. Remove bracket [A] ( x4, x1)
Shift Tray
63
