Stack Junction Gate Motor
The stack junction gate motor is on the back of the finisher.
Preparation
• Rear upper cover (page 15)

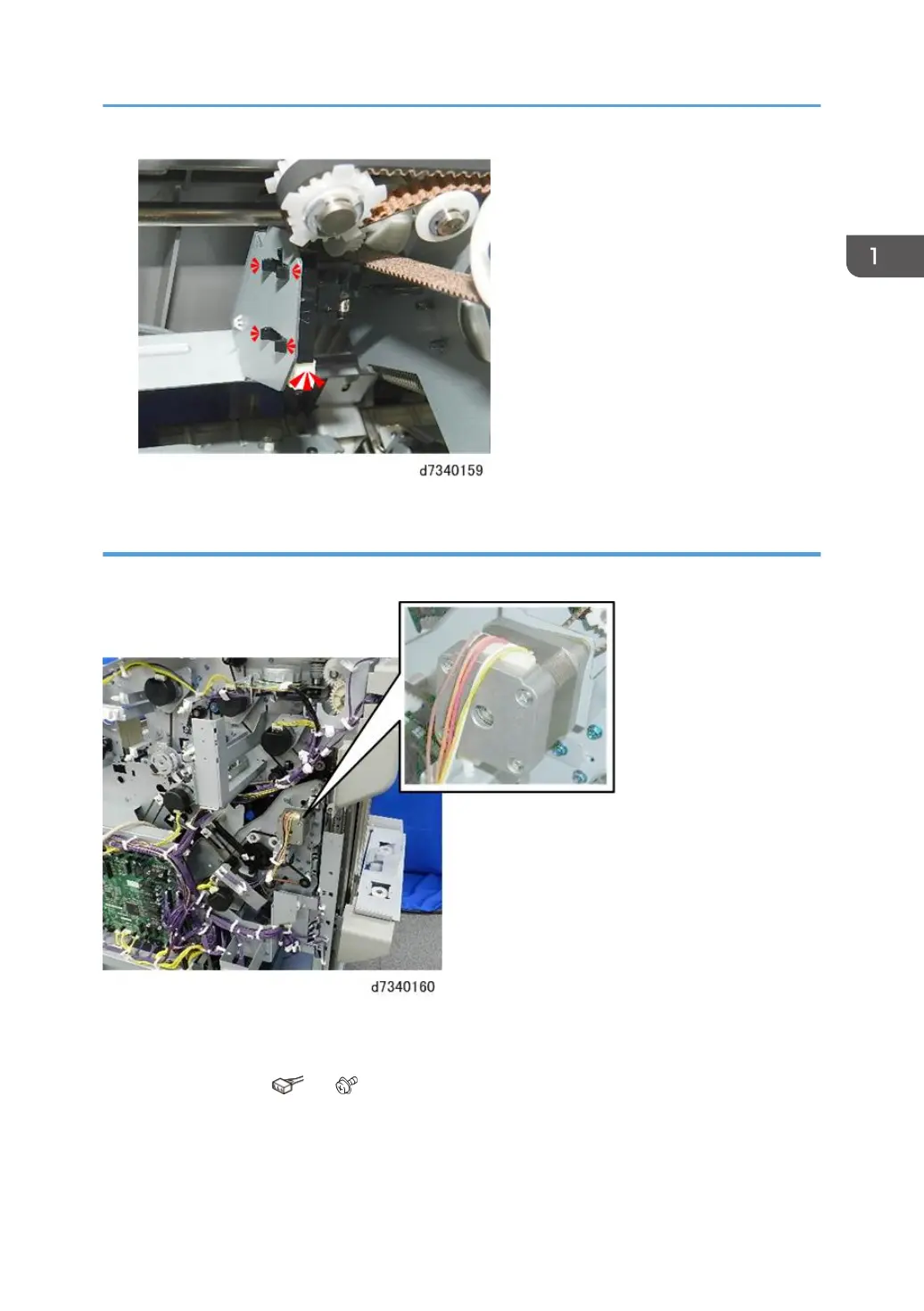

1. Remove motor [A] ( x1, x2).
Corner Stapler Unit
129
