Ricoh SR5050 - Booklet Stapler Top Fence Motor

Booklet Stapler Top Fence Motor

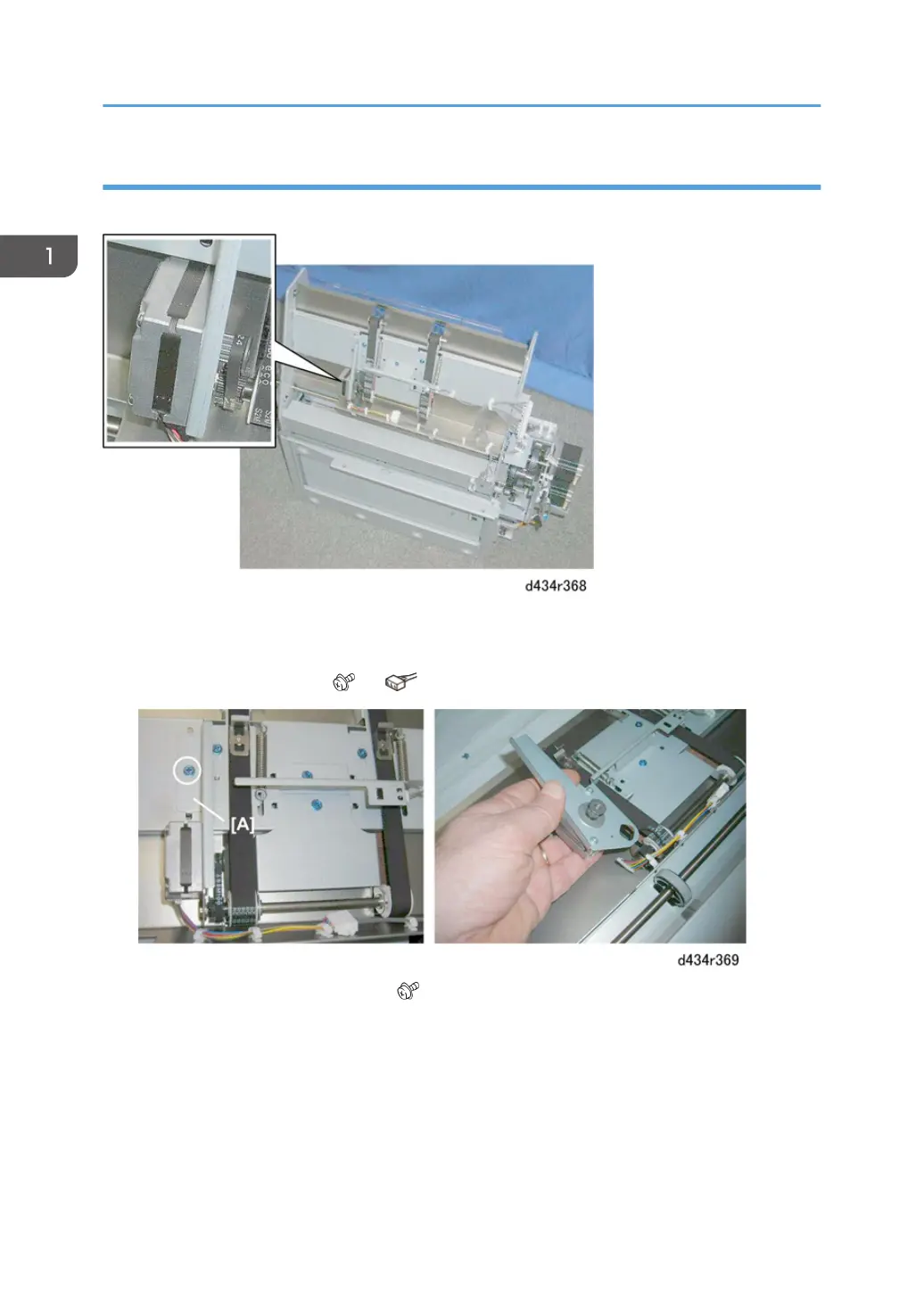

The top fence motor and sensor are on top of the booklet unit.
Preparation
• Booklet unit (page 29)
1. Remove sensor bracket [A] ( x1, x1)
2. Separate motor [A] from the bracket ( x2)
1. Replacement and Adjustment
