Ricoh SR5050 - Booklet Stapler Bottom Fence HP Sensor

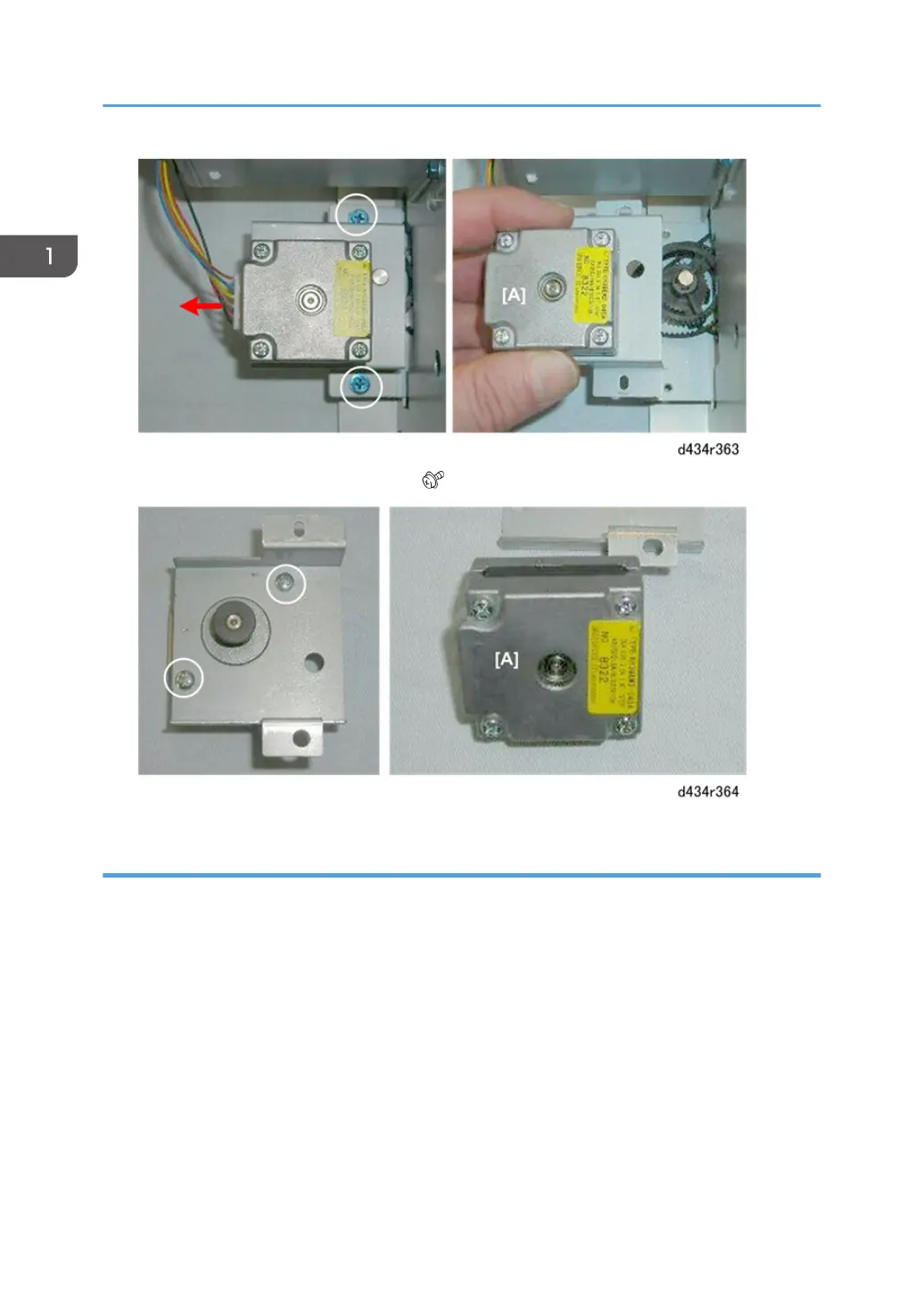

2. Separate the motor [A] from the bracket ( x2).
Booklet Stapler Bottom Fence HP Sensor
Preparation
• Booklet unit (page 29)
• Booklet stapler (page 28)
1. The bottom fence HP sensor is fastened to the right plate of the booklet unit.
1. Replacement and Adjustment
