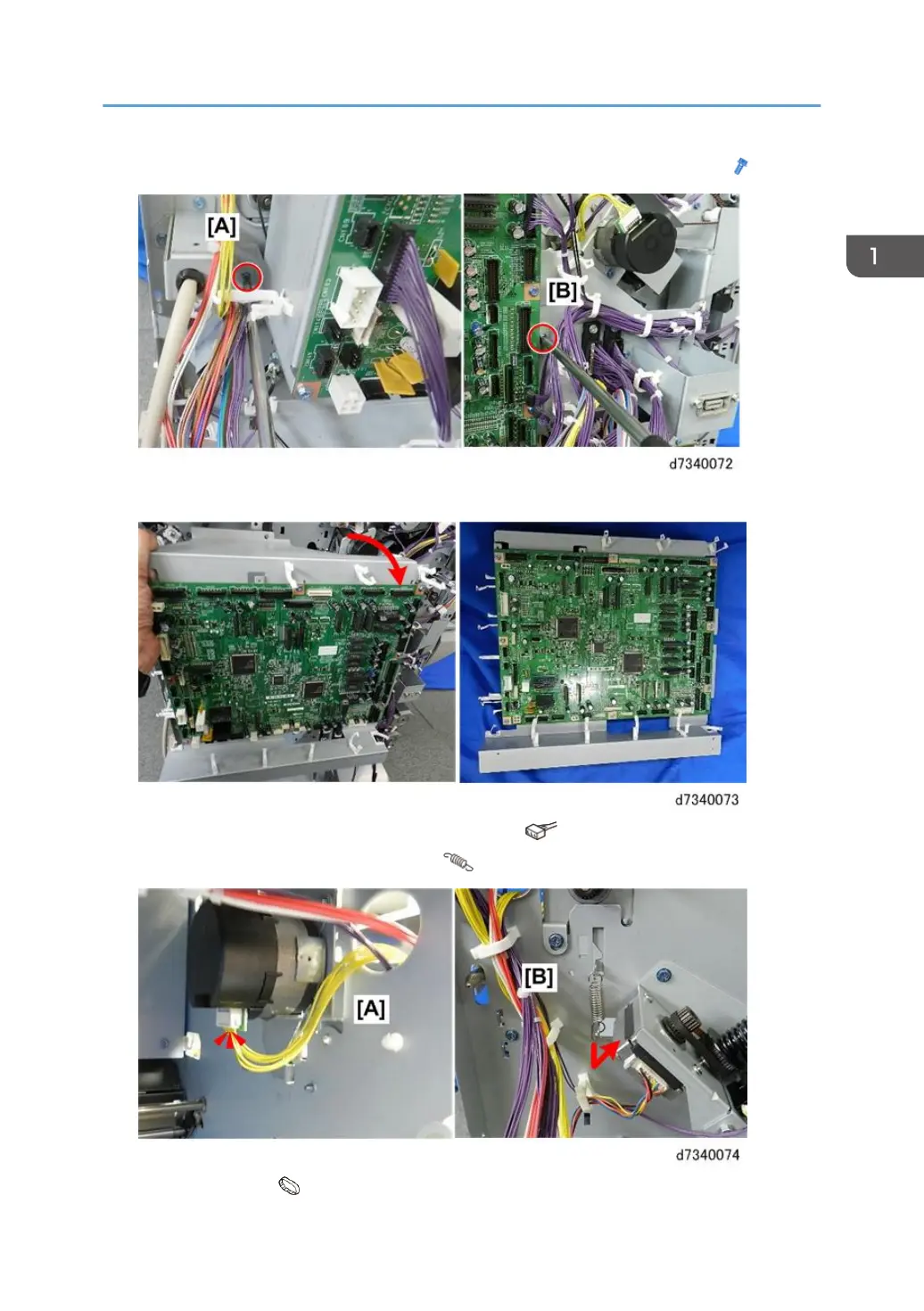

5. Disconnect the board bracket at lower left corner [A] and right edge of the board [B] ( x2).
6. Remove the bracket with main board attached.
7. On the other side of the frame [A] disconnect the motor ( x1).
8. On the front of the frame [B] remove spring ( x1).
9. Disconnect belt [A] ( x1).
